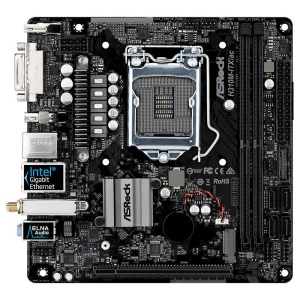

Unique Feature |
ASRock Super Alloy |
|
- Premium 60A Power Choke |
|
- Dual-Stack MOSFET (DSM) |
|
- Sapphire Black PCB |
|
- High Density Glass Fabric PCB |
|
Intel 802.11ac WiFi |
|
ASRock Full Spike Protection (for all USB, Audio, LAN
Ports) |
|
ASRock Live Update &APP Shop |
CPU |
- Supports 8th Generation Intel Core
Processors (Socket 1151) |
|
- Supports CPU up to 95W |
|
- Digi Power design |
|
- 5 Power Phase design |
|
- Supports Intel Turbo Boost 2.0
Technology |
Chipset |
- Intel H310 |
Memory |
- Dual Channel DDR4 Memory Technology |
|
- 2 x DDR4 DIMM Slots |
|
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered
memory |
|
- Supports ECC UDIMM memory modules (operate in non-ECC
mode) |
|
- Max. capacity of system memory: 32GB* |
|
- Supports Intel Extreme Memory Profile (XMP)
2.0 |
|
- 15 Gold Contact in DIMM Slots |
|
|
|
*Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under
Windows 32-bit OS. For Windows 64-bit OS
with 64-bit CPU, there is no such limitation. |
BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI
support |
|
- ACPI 6.0 Compliant wake up events |
|
- SMBIOS 2.7 Support |
|
- CPU, DRAM, PCH 1.0V, VCCST Voltage
Multi-adjustment |
Graphics |
- Supports Intel UHD Graphics Built-in Visuals :
Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, IntelInTru 3D, Intel Clear Video HD
Technology, Intel Insider, Intel UHD
Graphics |
|
- DirectX 12 |
|
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit,
VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode
only) |
|
- Three graphics output options: DVI-I, HDMI and DisplayPort
1.2** |
|
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @
30Hz |
|
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz |
|
- Supports DVI-I with max. resolution up to 1920x1200 @
60Hz |
|
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit
Rate Audio) with HDMI Port (Compliant HDMI monitor is
required) |
|
- Supports HDCP with DVI-I, HDMI and DisplayPort 1.2
Ports |
|
- Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2
Ports |
|
|
|
*Intel UHD Graphics Built-in Visuals and the VGA
outputs can be supported only with processors which are GPU
integrated. |
|
**Supports up to 2 displays simultaneously |
Audio |
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* |
|
- Supports Surge Protection |
|

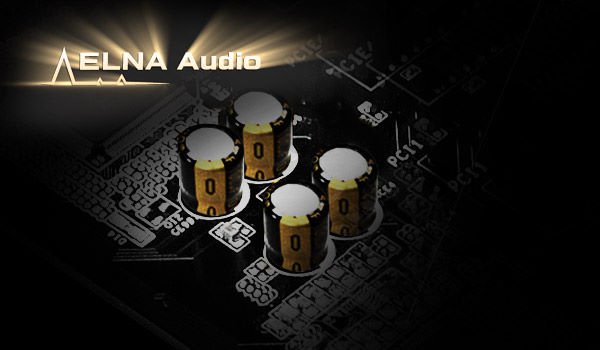

- ELNA Audio Caps |
|
|
|
*To configure 7.1 CH HD Audio, it is required to use an HD front panel
audio module and enable the multi-channel audio feature through the audio
driver. |
LAN |
- Gigabit LAN 10/100/1000 Mb/s |
|
- Giga PHY Intel I219V |
|
- Supports Wake-On-LAN |
|
- Supports Lightning/ESD Protection |
|
- Supports Energy Efficient Ethernet 802.3az |
|
- Supports PXE |
Wireless LAN |
- Intel 802.11ac WiFi Module |
|
- Supports IEEE 802.11a/b/g/n/ac |
|
- Supports Dual-Band (2.4/5 GHz) |
|
- Supports high speed wireless connections up to
433Mbps |
|
- Supports Bluetooth 4.2 / 3.0 + High speed class
II |
Slots |
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* |
|
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module
(on the rear I/O) |
|
*Supports NVMe SSD as boot disks |
Storage |
- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot
Plug* |
|
- 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)** |
|
|
|
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be
disabled. |
|
**Supports NVMe SSD as boot disks |
|
Supports ASRock U.2 Kit |
Connector |
- 1 x Chassis Intrusion Header |
|
- 1 x CPU Fan Connector (4-pin)* |
|
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)** |
|
- 1 x 24 pin ATX Power Connector |
|
- 1 x 8 pin 12V Power Connector |
|
- 1 x Front Panel Audio Connector |
|
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD
Protection) |
|
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD
Protection) |
|
|
|
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan
power. |
|
The Chassis Fan Connector supports the chassis fan of maximum 1A (12W)
fan power. |
|
**The Chassis/Water Pump Fan supports the water cooler fan of maximum
2A (24W) fan power. |
|
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in
use. |
Rear Panel I/O |
- 2 x Antenna Ports |
|
- 1 x PS/2 Mouse/Keyboard Port |
|
- 1 x DVI-I Port |
|
- 1 x HDMI Port |
|
- 1 x DisplayPort 1.2 |
|
- 2 x USB 2.0 Ports (Supports ESD Protection) |
|
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) |
|
- HD Audio Jacks: Line in / Front Speaker /
Microphone |
|
|
Software and UEFI |
|
Software |
- ASRock A-Tuning |
|
- ASRock XFast LAN |
UEFI |
- ASRock EZ Mode |
|
- ASRock Full HD UEFI |
|
- ASRock My Favorites in UEFI |
|
- ASRock Instant Flash |
|
- ASRock Internet Flash |
|
|
|
*These utilities can be downloaded from ASRock Live Update &APP
Shop. |
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar |
Accessories |
- Quick Installation Guide, Support CD, I/O Shield |
|
- 2 x SATA Data Cables |
|
- 2 x ASRock WiFi 2.4/5 GHz Antennas |
|
- 1 x Screw for M.2 Socket |
Hardware Monitor |
- Temperature Sensing: CPU, Chassis, Chassis/Water Pump
Fans |
|
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump
Fans |
|
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
Chassis, Chassis/Water Pump Fans |
|
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump
Fans |
|
- CASE OPEN detection |
|
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
Form Factor |
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0
cm |
|
- Solid Capacitor design |
OS |
- Microsoft Windows 10
64-bit |
Certifications |
- FCC, CE |
|
- ErP/EuP ready (ErP/EuP ready power supply is
required) |
