Aten CL3800NW 18.5" Ultra Short Depth Dual Rail Widescreen FHD LCD
Console - USB/HDMI/DVI/VGA, 1U Rackmount
The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM
console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated
keyboard and touchpad. The short-depth design fits all 19" equipmentcabinets,and is especially suitable for shallow
racks. In addition to saving valuable space on the rack, the CL3800 also
provides a space-saving solution for special environments, such as outside
broadcast vans (OB vans) and compact control rooms.
The CL3800 supports three types of video input HDMI, DVI, and VGA and
provides the ultimate in installation flexibility by allowing users to connect
the console and the computer via any of the three types ofvideosource. The CL3800s full HD widescreen
LCD monitor ensures excellent video quality and provides ample viewing area.

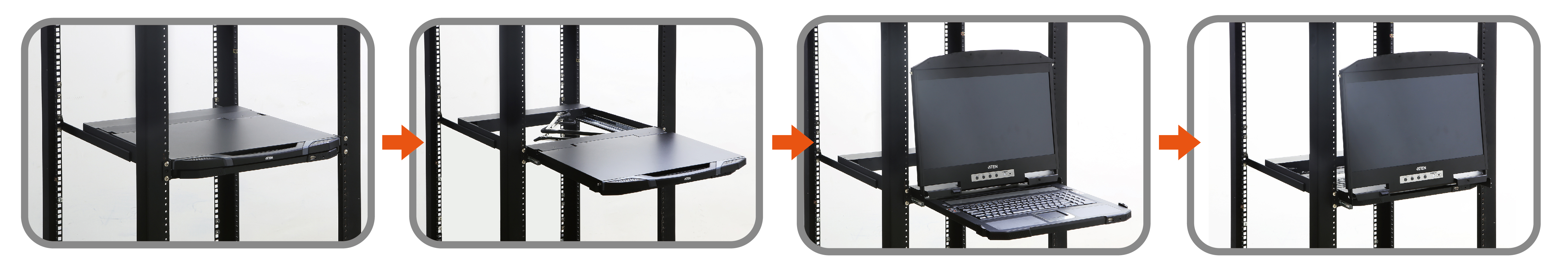

Furthermore, the dual rail design enables the LCD monitor, keyboard and
touchpad to operate independently of each other. To maximize space utilization,
the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor
rotates back, flush against the rack, to allow the convenient monitoring of
computer activity.
For added convenience, users can choose to manage the computer from an
external console. The CL3800 features a port for an external USB mouse on the
units front panel, while ports for the second KVM console (USB keyboard/mouse
and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also
includes two mini stereo ports for connecting audio speakers.
With a rich feature set, the CL3800 is designed to exceed the requirements
for space utility optimization, superior video quality, adaptive deployment, and
operational versatility, and is ideal for applications such as mobile live
streaming in the broadcasting sector or control rooms with limited space in any
industry.
Package Contents
- 1x CL3800 LCD KVM Console with Standard Rack Mount Kit
- 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
Features
- Space Utility Optimization
- Exclusive LED illumination light designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen Full HD
LCD monitor in a dual rail housing with top and bottom clearance for smooth
operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment
in narrow spaces
- Dual rail design allows LCD monitor and keyboard/touchpad modules to
operate independently
- Console lock enables the console drawer to remain securely locked away
in position when not in use
- Remarkable Audio/Video Experience
- Support three types of video inputs HDMI, DVI, and VGA*
- 18.5" LCD screen with Full HD resolution of 1920 x 1080; the external
console supports 1920 x 1200
- Audio support for connecting speakers
- Installation Flexibility
- Standard rack mount kit included
- Optional Easy Installation Rack Mounting Kit available**
- No software required
- Firmware upgradable
- Supports hot-plugging
- Operational Versatility
- Supports an external console with USB / HDMI / DVI / VGA connectors*
- Additional hot-pluggable USB mouse port on front panel (also functions
as a USB peripheral port)
- Console selection via hotkey
- Standard 105-key keyboard
- Keyboard Language support: English(US), English(UK), French, German,
German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian,
Spanish, Swedish , Traditional Chinese and Turkish
* Only one video signal (HDMI, DVI-D, or VGA) can be displayed attime.
** The Easy Installation Rack Mounting Kit is sold separately. Contact your
ATEN dealer for product information

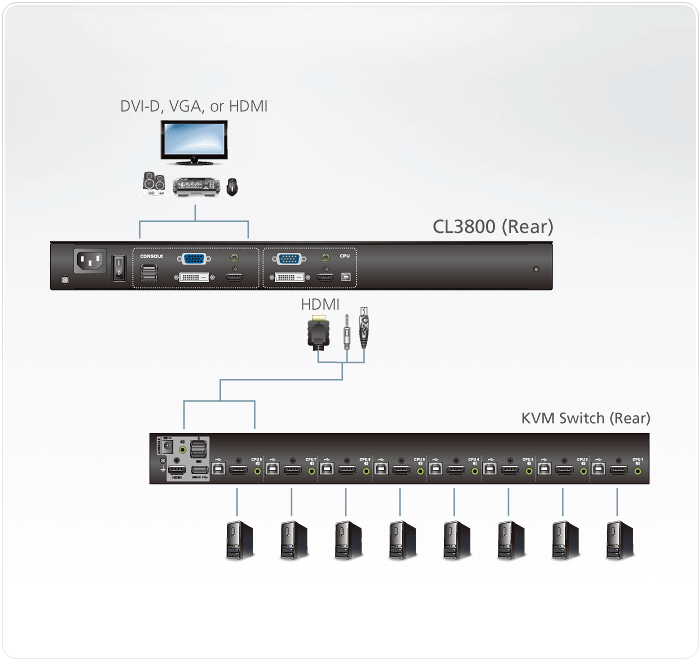

Diagram
Specifications
Function |
CL3800NW |
|
|
Computer Connections |
|
Direct |
1 |
|
|
Console Selection |
Hotkey |
|
|
Connectors |
|
External Console Ports |
1 x HDMI Female |
|
1 x DVI-D Female (White) |
|
1 x HDB-15 Female (Blue) |
|
2 x USB Type A Female |
|
1 x 3.5mm Audio Jack Female (Green) |
KVM Ports |
1 x HDMI Female |
|
1 x DVI-D Female (White) |
|
1 x HDB-15 Male (Blue) |
|
1 x USB Type B Female |
|
1 x 3.5mm Audio Jack Female (Green) |
USB Port |
1 x USB Type A Female |
Firmware Upgrade |
1 x 3.5mm Audio Jack Female (Black) |
Power |
1 x 3-prong AC Socket |
|
|
Switches |
|
Reset |
1 x Semi-recessed Pushbutton |
Firmware Upgrade |
1 x Slide |
Power |
1 x Rocker |
LCD Power |
1 x Pushbutton |
LCD Adjustment |
4 x Pushbutton |
|
|
LEDs |
|
Power |
1 x KVM Console (Dark Green) |
|
1 x LCD (Orange) |
Lock |
1 x NumLock (Green) |
|
1 x CapsLock (Green) |
|
1 x ScrollLock (Green) |
|
|
Video |
|
Input Video Resolution |
1920 x 1200 @ 60 Hz, DDC2B |
|
|
Panel Spec |
|
LCD Module |
18.5" TFT-LCD |
Resolution |
1920 x 1080 @ 60 Hz |
Pixel Pitch |
0.213 mm x 0.213 mm |
Response time |
20 ms |
Viewing Angle |
178° (H), 178° (V) |
Contrast Ratio |
1000:01:00 |
Support Color |
16.77M colors |
Luminance |
350 cd/m² |
|
|
Emulation |
|
Keyboard / Mouse |
USB |
Maximum Input Power Rating |
100–240V AC; 50–60Hz; 1A |
Power Consumption |
AC110V:26.6W:140BTU |
|
AC220V:26.8W:141BTU |
|
|
Environmental |
|
Operating Temperature |
0-40°C |
Storage Temperature |
-20-60°C |
Humidity |
0 - 80% RH, Non-condensing |
|
|
Physical Properties |
|
Housing |
Metal |
Weight |
9.61 kg ( 21.17 lb ) |
Dimensions (L x W x H) |
48.06 x 51.42 x 4.28 cm |
|
(18.92 x 20.24 x 1.69 in.) |
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
