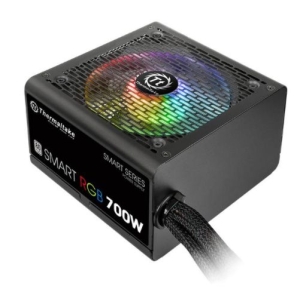

Thermaltake 700W Smart RGB Power Supply - ATX12V/2.3, 80PLUS
White
Thermaltake, as the pioneer who incorporates RGB lights into PSU, has
launched the Thermaltake Smart RGB Series, coming with a pre-installed, 256
colors RGB fan hub with 15 lighting modes to choose from and built-in
memory.
Featuring capacities ranging from 500W to 700W and 80 PLUS Standard
certification, Smart RGB Series adopts the high quality components and silent
design that always accommodate any mainstream build under any circumstance.

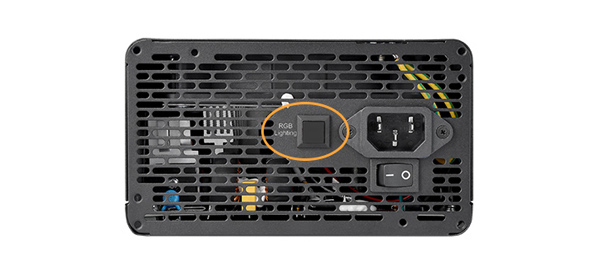

One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among
variants including Pulse Red/Green/Blue/Yellow/Purple/Light Blue/White, 256
Color RGB Cycle, Solid Red/Green/Blue/Yellow/Purple/Light Blue/ White, and a LED
Off mode. The fan is also constructed with a built-in memory function, saving
the color applied and insuring the same color selection every time you boot your
PC.

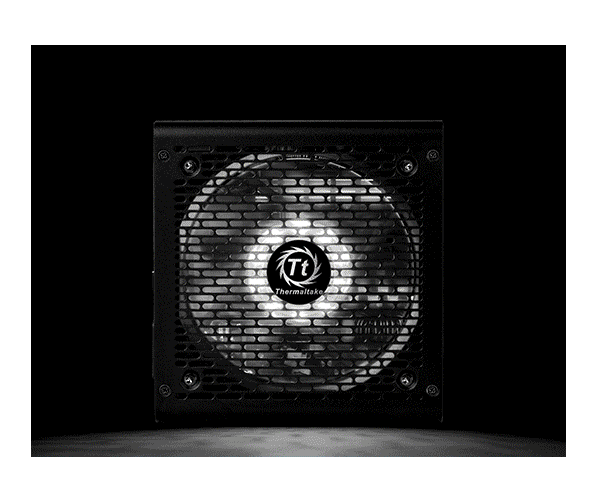

10 LED Light Bulbs
The Smart RGB Series adopts 10 LED light bulbs to enhance the brightness and
spawn an advanced user experience in the world of illumination.

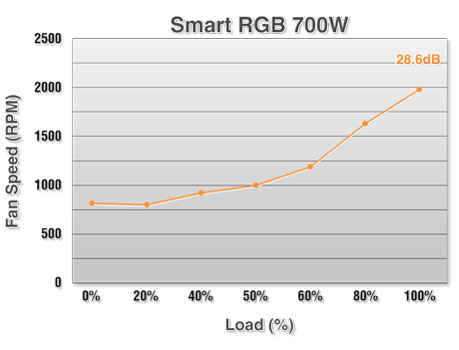

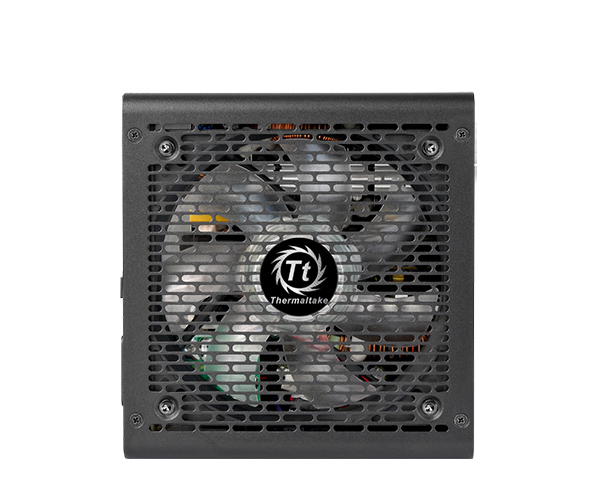

Ultra Quiet 120mm Fan
SMART RGB series adopt 120mm cooling fan with intelligent RPM control
guarantees excellent cool performance and silent operation.
High Amperage Single +12V Rail
Smart RGB 700W White is equipped with a powerful single +12V rail,
eliminating the limitations caused by voltage distributions, delivering the
power your CPU and VGA demand in any situations. Providing the best
compatibility, conversion efficiency and stable voltage output.
Multiple Connectors
Smart RGB offers cable selection for users while powering the system at an
advantageous voltage. Further, the multiple connectors make cable installation
an easy task.
80 PLUS Certified and Kaby Lake Ready
Deliver up to 87% efficiency under real world load conditions to promise low
power losses. Additionally, Smart RGB Series has been optimized to work with
Intels latest, seventh-generation Kabylake processors to achieve maximum energy
saving.

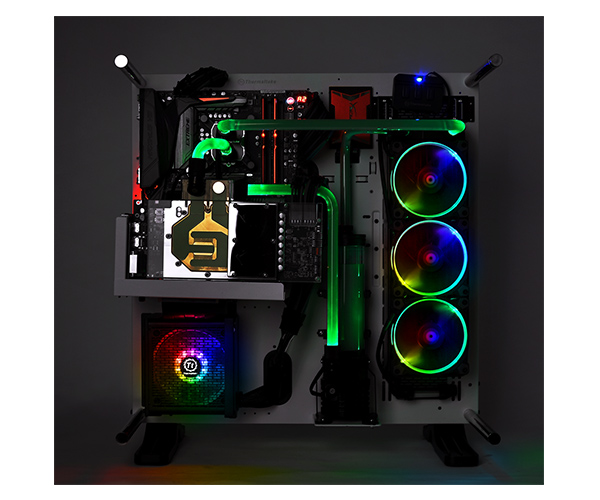

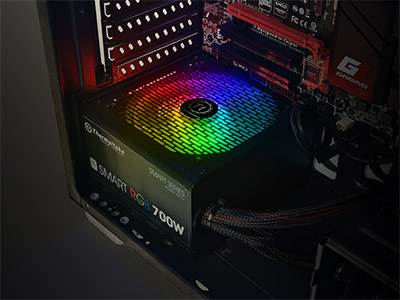

RGB Lighting Provides Best Aesthetics for All Chassis
Smart RGB Series is the best idea for users to go with when they are looking
for an RGB PSU which permits remarkable functionality and aesthetics in all
cases, especially Open Frame or Tower cases.

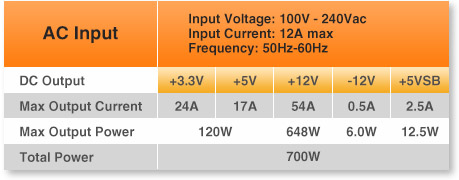

Specifications
|
Short P/N |
SPR-0700NHFAW |
|
Model |
SPR-700AH2NK-1 |
|
Type |
Intel ATX 12V 2.3 |
|
Max. Output Capacity |
700W |
|
Color |
Black |
|
Dimension (H x W x D) |
86mm x 150mm x 140mm |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power Good Signal |
100-500 msec |
|
Hold Up Time |
16msec (minimum) within 60% load |
|
Input current |
12A max |
|
Input Frequency Range |
50 Hz - 60 Hz |
|
Input Voltage |
100Vac - 240Vac |
|
Operating Temperature |
5 to +40 |
|
Operating Humidity |
20% to 85%,non-condensing |
|
Storage Temperature |
-40 to +55 |
|
Storage Humidity |
10% to 95%, non-condensing |
|
Cooling System |
120mm Fan: 1800 R.P.M. 10% |
|
Efficiency |
80-87% efficiency @ 20-100% load |
|
MTBF |
100,000 hrs minimum |
|
Safety Approval |
CE/CB/TUV/ UL/ FCC/ EAC |
|
P/N |
PS-SPR-0700NHFAWx-1 |
|
Protection |
OVP, OPP, SCP |
