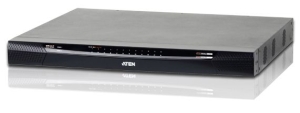

Aten KN2124VA 24-Port Cat5 KVM Over IP Switch w. Virtual Media - 1-Local /2-Remote Access

Features

• New KN Series Exclusive
• High grade security supports FIPS 140-2 level 1 security standards
• Extreme virtual media speed 2 x faster virtual media transmission speed
• Advanced FPGA graphics processor with an Full HD resolution of 1920 x 1200
• Simultaneously share one local console and two independent connections to the attached servers
• Hardware
• High port density RJ-45 connectors and Cat 5e/6 cable for up to16 ports in a 1U housing
• Laptop USB Console (LUC) A dedicated USB port directly connects to a laptop for easy Console operation
• Two separate buses for remote KVM over IP access
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Blade server support
• Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
• Local console provides USB keyboard and mouse support
• Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
• Audio enabled
• Dual Power Supply
• High video resolution up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switchs local console and on remote session displays
• Monitor and control up to 16 computers on a single level, or control up to 256 computers in a cascade*
• * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A
• Management
• Up to 64 user accounts
• Up to 32 concurrent logins
• Green IT-Fan speed varies according to temperature
• Event logging and Windows-based Log Server support
• Critical system event notification via SMTP email; SNMP trap and Syslog support
• Customizable events notification
• Firmware upgradeable
• Out-of-Band Access-Modem dial-in/dial out/dial back support
• Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Integration with ATEN CC2000 Management Software
• Integration with ATEN CCVSR Video Session Recording Software*
• Power Association enables the switchs KVM ports to be associated with ATEN PDUs power outlets for remote power management
• IPv6 capable
• *Supports recording computer operations accessed via remote sessions.
• Easy-to-Use Interface
• ATEN Exclusive Panel Array Mode simultaneously monitoring for both local console operators and remote access users
• Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
• Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
• Full-screen or sizable and scalable Virtual Remote Desktop
• Keyboard/Mouse Broadcast keyboard and mouse inputs can be duplicated on all the attached servers
• Video syncing with the local console local console monitors EDID information stored on the KVM Adapter Cables for display resolution optimization
• Advanced Security
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
• Support for IP/MAC Filter
• Configurable user and group permissions for server access and control
• Automated CSR creation utility and third party CA certificate authentication
• Virtual Media
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• Works with USB enabled servers in operating system and BIOS level
• Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Virtual Remote Desktop
• Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full screen video display or scalable video display
• Message Board for communication among remote users
• Mouse DynaSync-automatically synchronizes the local and remote mouse movements
• Exit Macros support
• On-screen keyboard with multilanguage support
• BIOS-level access for trouble shooting

Package Contents

• 1x KN2124VA KVM over IP Switch
• 2x Power Cords
• 1x Mounting Kit
• 2x Lok-U-Plugs
• 1x Lok-U-Plug Installation Tool
• 1x Foot Pad Set (4 pcs.)
• 1x User Instructions

Overview

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN2124VA feature superior video quality with Full HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.

The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.

Exclusive KN Series Features:

• High-grade security - supports FIPS 140-2 level 1 security standards
• 2x faster virtual media transmission speeds
• Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200

With dual on-board NICs and dual power supplies, the KN Series is built for reliability, to ensure 24/7 availability of remote access to all servers.

The KN series offers out-out-band (OOB) management that enables IT administrators to manage network devices (e.g. server, storage, router/switch) in server room via management networks separated from the main/production networks. So if there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-out-band accesses such as a direct console connection from a local computer, a USB console connection from a laptop, or a dedicated management network connection via the Ethernet (LAN) port.

The KN Series can be integrated into ATEN's CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Modeâ„¢, Mouse DynaSyncâ„¢ and the Adapter ID function.

A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere - minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.

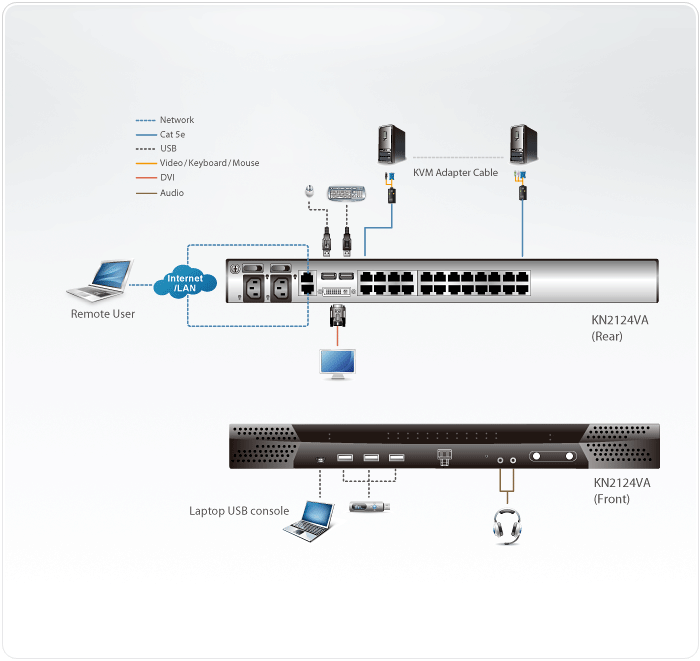

Diagram
