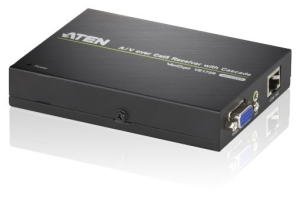

Aten VE172R VGA/Audio Cat5 Receiver w. Cascade
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus
Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10
levels make long distance transmissions up to 150m.
Compatible Transmitter Units:
- VE170T A/V Over Cat 5 Transmitter
- VS1204T A/V Over Cat 5 Transmitter
- VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
- VE172R A/V Over Cat 5 Receiver with Cascade
- VE170R A/V Over Cat 5 Receiver
- VE170RQ A/V Over Cat 5 Receiver with Deskew
Package Contents
- 1x VE172R A/V Over Cat 5 Receiver with Cascade
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Features
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Cascadable up to 10 levels
- Long distance transmission up to 150m
- Superior video quality - 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m);
1280x1024@ 60Hz (150 m)
- Audio enabled (mono)
- Adjustable gain/compensation control - manually adjusts signal strength to
compensate for distance
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard

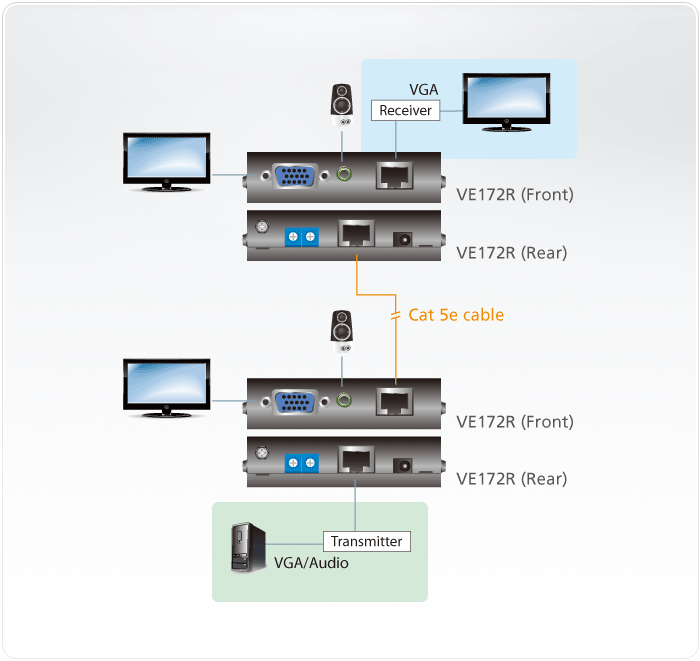

Diagram
Specifications
Video Output |
|
Interfaces |
1 x HDB-15 Female (Blue) |
Impedance |
75 |
|
|
Video |
|
Max. Bandwidth |
300 MHz |
Max. Resolutions / Distance |
Up to 1920 x 1200@30m; 1280 x 1024@150m |
|
|
Audio Outputs |
1 x Mini Stereo Jack Female (Green) |
|
|
Connectors |
|
Power |
1 x DC Jack (Black) |
|
|
Power Consumption |
5.3 VDC, 2.3W |
|
|
Environmental |
|
Operating Temperature |
0 - 50°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
|
|
Physical Properties |
|
Housing |
Metal |
Weight |
0.24 kg ( 0.53 lb ) |
Dimensions (L x W x H) |
12.77 x 9.04 x 2.26 cm |
|
(5.03 x 3.56 x 0.89 in.) |
|
|
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
