Aten VE601 DVI HDBaseT-Lite Extender
The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up
to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology
even supports sharing 1920 x 1200 media up to 40 m away, offering a simple,
adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional
A/V installations that require video signal interference protection, such as in
medical and military installations. With its lightweight and easy-to-mount
design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be
installed nearly anywhere while ensuring peace of mind with its unerring
reliability.
Package Contents
- 1x VE601T/R DVI HDBaseT-Lite Extender
- 2x Power Adapters
- 1x User Instructions
Features
- HDBaseT Connectivity - extends a DVI 1080p connection up to 70 meters via
a single Cat 6a/ATEN 2L-2910 Cat 6 cable
- DVI (3D, Deep color); HDCP 1.4 compliant
- Superior video quality -1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m(Cat 5e/6) / 70m (Cat 6a)
- HDBaseT Anti-Jamming - resists signal interference during video
transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable

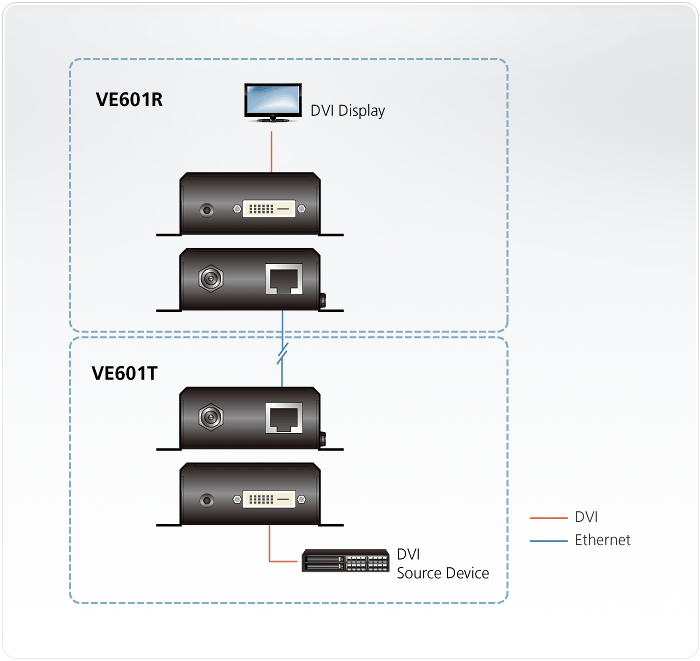

Diagram
Specifications
|
Function |
VE601R |
VE601T |
|
Video Input |
|
|
|
Interfaces |
N/A |
1 x DVI-D Female (White) |
|
Impedance |
N/A |
100 |
|
Max. Distance |
N/A |
Up to 1.8m |
|
|
|
|
|
Video Output |
|
|
|
Impedance |
100 |
N/A |
|
Interfaces |
1 x DVI-D Female (White) |
N/A |
|
|
|
|
|
Video |
|
|
|
Max. Pixel Clock |
340 MHz |
340 MHz |
|
Max. Data Rate |
10.2Gbps (3.4Gbps per lane) |
10.2Gbps (3.4Gbps per lane) |
|
Compliance |
DVI (3D, Deep Color) |
DVI (3D, Deep Color) |
|
|
HDCP compatible |
HDCP compatible |
|
Max. Resolutions / Distance |
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910
Cat6); |
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910
Cat6); |
|
|
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910
Cat6) |
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910
Cat6) |
|
|
|
|
|
Connectors |
|
|
|
Power |
1 x DC Jack with locking |
1 x DC Jack with locking |
|
Unit To Unit |
1 x RJ-45 Female |
1 x RJ-45 Female |
|
|
|
|
|
Power Consumption |
5 VDC, 4.23 W |
5 VDC, 1.85 W |
|
|
|
|
|
Environmental |
|
|
|
Operating Temperature |
0-50°C |
0-50°C |
|
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
|
Humidity |
0% - 80% RH, Non-condensing |
0% - 80% RH, Non-condensing |
|
|
|
|
|
Physical Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.25 kg ( 0.55 lb ) |
0.25 kg ( 0.55 lb ) |
|
Dimensions (L x W x H) with bracket |
10.20 x 8.70 x 3.00 cm |
10.20 x 8.70 x 3.00 cm |
|
|
(4.02 x 3.43 x 1.18 in.) |
(4.02 x 3.43 x 1.18 in.) |
|
Dimensions (L x W x H) without bracket |
9.42 x 6.60 x 2.90 cm |
9.42 x 6.60 x 2.90 cm |
|
|
(3.71 x 2.6 x 1.14 in.) |
(3.71 x 2.6 x 1.14 in.) |
|
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH format. |
|
