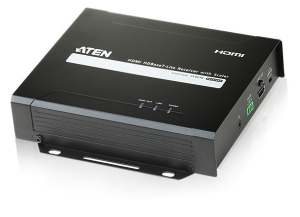

VE805R-AT-U | ATEN VE805R HDMI HDBaseT-Lite Receiver w. Scaler

Aten VE805R HDMI HDBaseT-Lite Receiver w. Scaler

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Package Contents

• 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
• 1x Power Adapter
• 1x IR Transmitter
• 1x IR Receiver
• 1x Terminal Block
• 1x User Instructions

Features

• Extends HDMI, RS-232, and IR signals up to 70 m over a single Cat 5e/6/6a cable
• HDMI (3D, Deep Color) ; HDCP 1.4 compliant
• Superior video quality - 1080p@60m (Cat 5e/6); 70m (Cat 6a)
• Scaler - scales videos of different resolutions to their optimal output for display and to avoid black screen*
• Video Wall - features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
• Seamless Switch - close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
• HDBaseT Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
• Bi-directional RS-232 channel - allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
• Bi-directional IR channel - IR transmission is processed one direction at a time***
• Firmware upgradeable
• Built- in 8KV / 15 KV ESD protection
• Plug-and-play
• Rack-mountable

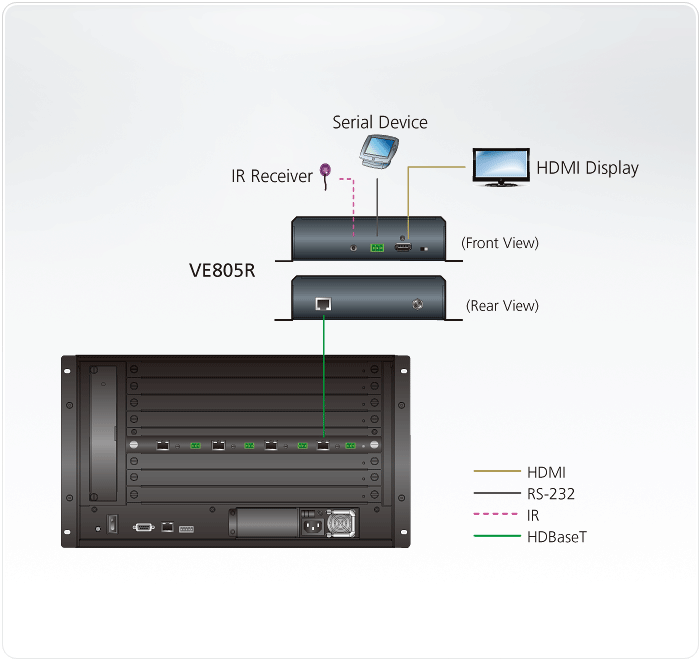

Diagram

Specifications
