All stock codes associated to this product
VE812RATU, VE812R-AT-U, 4719264640285

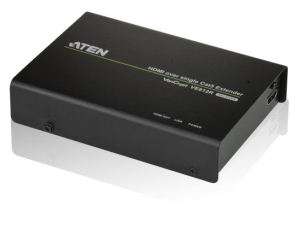

Aten VE812R HDMI HDBaseT Receiver
The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that
uses a single Cat 5e cable to extend signals up to 100 m.The VE812R not only
supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible.
Furthermore remote EDID pass-through ensures optimum video quality for your HDMI
display.
The VE812 is perfect for the meeting room, home theater or any installation
that needs long distance transmission and superior video quality.
Package Contents
- 1x VE812R HDMI Over Single Cat 5 Receiver
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Features
- Implements HDBaseT extension technology using only one Cat 5e cable to
connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video
transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Selects the optimum EDID settings for smooth power-up and highest quality
display
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15
KV)

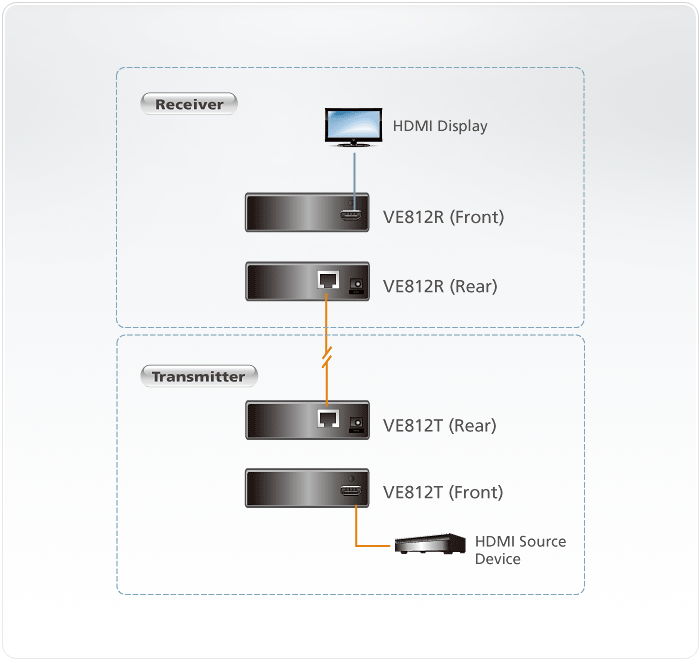

Diagram
Specifications
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 |
|
|
|
|
Video |
|
|
Max. Data Rate |
10.2 Gbps (3.4 Gbps Per Lane) |
|
Max. Pixel Clock |
Up to 340 MHz |
|
Compliance |
HDMI (3D, Deep Color, 4K) |
|
|
HDCP Compatible |
|
|
Consumer Electronics Control (CEC) |
|
Max. Resolutions / Distance |
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); |
|
|
1080p@100m |
|
|
*4K supported: |
|
|
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); |
|
|
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
|
Output |
1 x HDMI Type A Female (Black) |
|
|
|
|
Connectors |
|
|
|
|
|
Power |
1 x DC Jack |
|
|
|
|
Power Consumption |
DC5.3V:5.06W:24BTU |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.41 kg ( 0.9 lb ) |
|
Dimensions (L x W x H) |
14.17 x 10.30 x 3.00 cm |
|
|
(5.58 x 4.06 x 1.18 in.) |
|
|
|
|
|
|
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
|
|
|
