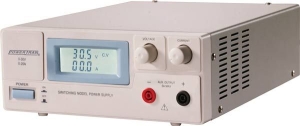

Powertran 30V 20A Regulated Bench Top Power Supply

IMG 1 of 2
Our Price:
$419.50
RRP:
$499.00
You Save:
$79.50
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
433446
(?) Brand:
Powertran Web Site
Manuf No:
M8310
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
M8310, 9321758175064
A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Offers the flexibility of both wide adjustable voltage and current range. Size: 336W x 87H x 214Dmm. Weight: 2.9kg.

Features

  • Up to 20A output
  • 0-30V adjustable
  • High efficiency switchmode design
  • Over temperature, voltage and overload protection
  • Low ripple &noise
  • High RFI stability

Specifications

  • Input voltage: a.c. 220-240V @ 50Hz
  • Output voltage: 0 - 30V d.c.
  • Output current max: 20A
  • Supply regulation: CV=1%+10mV
  • Load regulation: CV=1%+5mV
  • Ripple: 100mVp-p
  • Protection: Current limiting
  • Voltmeter: LCD ±2% +3 counts
  • Ammeter: LCD ±2% +3 counts
  • Operating Temperature: 0ºC-40ºC
  • Operating Humidity: 90%
  • Operating time: 8hrs
  • Dimensions: 87 x 214 x 336mm

      • *Specifications are subject to change without notice.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Powertran) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
