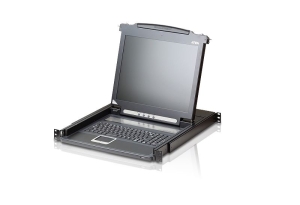

Aten CL-1000MA 17' LCD KVM Slide Console
RackMountable
Overview
The CL1000 is a LCD KVM console that serves as the front-end for standard KVM
switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel,
full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and
efficiency benefits of the CL1000 LCD KVM console without the unnecessary
expense of having to purchase a KVM switch. This model provides convenient ‘at
the rack’ console access to KVM switches already installed at your site.
CL1000M: 17" LCD
Package Contents
- 1x CL1000M or CL1000N with Standard Rack Mount Kit
- 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Power Cord
- 1x User Instructions
Features
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a
sliding housing with top and bottom clearance for smooth operation in a 1U
high system rack*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U – with top and bottom clearance for
smooth operation in a 1U high system rack
- Compatible with most PS/2 KVM Switches
- Internal power supply
- Adjustable depth to fit within a rack
- High video resolution:
- Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to
1280 x 1024 @ 75 Hz with the built-in LCD screen
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor–Video settings of attached computers
are automatically adjusted for optimal output to the LCD monitor
- Keyboard Language support: English (US), English (UK), French, German,
German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean,
Russian, Spanish, Swedish, and Traditional Chinese
- Improved design – optional single person installation kit
Note: Custom KVM cables or converters are available for USB support
Compatible rack mounting kit:
CL1000M: 2X-010G, 2X-011G, 2X-012G
CL1000N: 2X-023G, 2X-024G, 2X-025G
Diagram
Specifications
|
Computer
Connections |
|
|
Direct |
1 |
|
|
|
|
Connectors |
|
|
KVM
Ports |
1
x SPHD Female (Yellow) |
|
Power |
1
x 3-prong AC Socket |
|
|
|
|
Switches |
|
|
Reset |
1
x Semi-recessed Pushbutton |
|
Power |
1
x Rocker |
|
LCD
Power |
1
x Pushbutton |
|
LCD
Adjustment |
4
x Pushbutton |
|
|
|
|
LEDs |
|
|
Power |
1
x KVM Console (Dark Green) |
|
|
1
x LCD (Orange) |
|
Lock |
1
x NumLock (Green) |
|
|
1
x CapsLock (Green) |
|
|
1
x ScrollLock (Green) |
|
|
|
|
Video |
|
|
Input
Video Resolution |
1920
x 1200 @ 60Hz; DDC2B |
|
|
|
|
Panel
Spec |
|
|
LCD
Module |
17"
TFT-LCD |
|
Resolution |
1280
x 1024 @ 75 Hz |
|
Pixel
Pitch |
0.264
mm x 0.264 mm |
|
Response
time |
5
ms |
|
Viewing
Angle |
170°
(H), 160° (V) |
|
Contrast
Ratio |
1000:01:00 |
|
Support
Color |
16.7M
colors |
|
Luminance |
250
cd/m² |
|
|
|
|
Emulation |
|
|
Keyboard
/ Mouse |
PS/2 |
|
|
|
|
Maximum
Input Power Rating |
100-240
VAC; 50-60 Hz; 1A |
|
|
|
|
Power
Consumption |
AC110V:14.2W:69BTU |
|
|
AC220V:15.5W:75BTU |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0-50˚C |
|
Storage
Temperature |
-20-60˚C |
|
Humidity |
0-80%
RH, Non-condensing |
|
|
|
|
Physical
Properties |
|
|
Housing |
Metal+Plastic |
|
Weight |
12.02
kg ( 26.48 lb ) |
|
Dimensions
(L x W x H) |
48.00
x 53.83 x 4.40 cm |
|
|
(18.9
x 21.19 x 1.73 in.) |
|
|
|
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
