Aerocool CL5716N-ATA-AU 16-Port Slideaway 19"
Single Rail LCD KVM
Overview

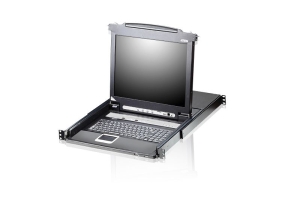

The CL5716N Slideawayâ„¢ LCD KVM Switch is a control unit that allows access to
multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse)
console. A single CL5716N can control up to 16 computers. As many as 31
additional KVM switches can be daisy-chained to the CL5716N, so that up to 512
computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch
technology by integrating a keyboard, 19" LED-backlit LCD monitor, and touchpad
in a 1U rack-mountable sliding housing.
Package Contents
- 1x CL5716N KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord (6ft.)
- 1x Grounding Wire (4ft.)
- 1x User Manual
- 1x Quick Start Guide
Features
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 19" LED-backlit LCD monitor in a Slideawayâ„¢
housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 16
computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a
single console (With compatible KVM Swithces: ACS1208A, ACS1216A,
CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards
and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and
simultaneous booting of multiple computers even when the console focus is
elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel
pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for
manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control
computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all
available computers on the installation
- Hot pluggable - add or remove computers without having to power down the
switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the
daisy-chain cable
- Keyboard Language support: English (US), English (UK), French, German,
German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish,
Swedish and Traditional Chinese
* The USB peripheral function only works with USB cable set connections. It
will not work with PS/2 cable set connections.
**The fingerprint reader can be used as an alternate means of logging in to
the switch. From 1 to 4 fingers can be scanned for each user and the
administrator, with any one of the recorded fingerprints used to log in.
