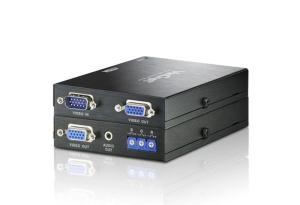

Aten VE170Q VGA/Audio Cat 5 Extender (1024 x 768@300m)
Overview
The VE170Q package consists of a transmitter (VE170T) and receiver (VE170RQ),
which includes ATEN’s patented Deskew™ technology that supports resolutions up
to 1280 x 1024 @ 300 m, and features manual synchronization of the RGB signals
and correction of color phase and timing errors that occur over long distances.
The VE170Q VGA / Audio Cat 5 Extenders provides a flexible solution which is
ideal for any professional A/V installation that requires multimedia content to
be delivered over a long distance.
Package Contents
- 1x VE170T + VE170RQ VGA/Audio Cat 5 Extender
- 1x VGA/Audio Cable (1.8m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User instructions
Features
- Connects a transmitter and receiver via Cat 5e cable
- Long distance transmission - up to 1920 x 1200@30m; 1024 x 768@300m
- Supports one local and one remote VGA display
- Long distance transmissions – up to 300 m
- Deskew™ – automatically synchronizes the time delay of RGB signals to
compensate for distance
- Adjustable Gain Control – signal strength can be manually adjusted via
video gain or video compensation tuners
- Audio supported (mono)
- Built-in ESD protection
- Rack-mountable
Diagram
Specifications
|
Function |
VE170RQ |
VE170T |
|
Video
Input |
|
|
|
Interfaces |
N/A |
1
x HDB-15 Male (Blue) |
|
Impedance |
N/A |
75
Ώ |
|
Max.
Distance |
N/A |
1.8
m |
|
|
|
|
|
Video
Output |
|
|
|
Interfaces |
1
x HDB-15 Female (Blue) |
1
x HDB-15 Female (Blue) |
|
Impedance |
75
Ώ |
75
Ώ |
|
|
|
|
|
Video |
|
|
|
Max.
Bandwidth |
300
MHz |
300
MHz |
|
Max.
Resolutions / Distance |
Up
to 1920 x 1200@150m; 1280 x 1024@300m |
Up
to 1920 x 1200@150m; 1280 x 1024@300m |
|
|
|
|
|
Audio |
|
|
|
Output |
1
x Mini Stereo Jack Female (Green) |
1
x Mini Stereo Jack Female (Green) |
|
Input |
N/A |
1
x Mini Stereo Jack Female (Green) |
|
|
|
|
|
Connectors |
|
|
|
Power |
1
x DC Jack |
1
x DC Jack |
|
|
|
|
|
Environmental |
|
|
|
Operating
Temperature |
0-50°C |
0-50°C |
|
Storage
Temperature |
-20
- 60°C |
-20
- 60°C |
|
Humidity |
0
- 80% RH, Non-Condensing |
0
- 80% RH, Non-Condensing |
|
|
|
|
|
Physical
Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.24
kg ( 0.53 lb ) |
0.24
kg ( 0.53 lb ) |
|
Dimensions
(L x W x H) |
12.77
x 9.04 x 2.26 cm |
12.77
x 9.04 x 2.26 cm |
|
|
(5.03
x 3.56 x 0.89 in.) |
(5.03
x 3.56 x 0.89 in.) |
|
Carton
Lot |
5
pcs |
5
pcs |
|
Power
Consumption |
DC5.3V:5.24W:25BTU |
DC5.3V:2.42W:11BTU |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH format. |
|
