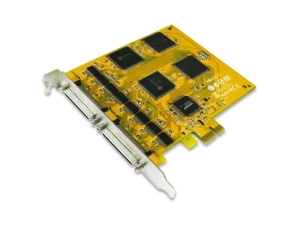

Sunix SER5416H 16-Port RS-232 High Speed Serial Board - PCI Express

IMG 1 of 1
Our Price:
$429.00
RRP:
$499.00
You Save:
$70.00
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
434735
(?) Brand:
Sunix
Manuf No:
SER5416H
Shipping Weight:
0.7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SER5416H, IDSUNSER5416H, IDSUN-SER5416H, 4710747389899

Sunix SER5416H 16-Port RS-232 High Speed PCI Express Serial Board



Features

  • Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Overview

SUNIX SER5416H, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 16 serial ports to their system, allowing them to use serial devices further. SUNIX SER5416H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

Serial Communication

Interface

RS-232

Controller

SUNIX SUN1999

(16C950 UART Compatible)

BUS

PCI Express one lane (x1)

No. of Port

16-port

IRQ & IO

Assigned by System

FIFO

128byte Hardware

Protection

±15KV ESD protection for each signal Human Body Model (HBM)

±15KV IEC1000-4-2 Air Gap Discharge

±8KV IEC1000-4-2 Contact Discharge

Signal

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Baud rate

50bps ~921.6Kbps

Stop bit

1, 1.5, 2

Parity

even, odd, none, mark, space

Flow Control

None, Xon/Xoff, RTS/CTS

PCB Connector

Mini SCSI 68 Female

Driver Support

Windows Client

XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server

2003 / 2008 / 2012 / 2016 (X64)

Windows Embedded

XP Embedded/POSReady 2009/POSReady 7/Embedded System 2009

Linux

Linux 2.x / 3.x / 4.x

DOS

DOS

FreeBSD

FreeBSD 5.3~5.5 / 6.0~6.4

QNX

QNX 6.3.2/6.4.0

IBM OS/2

WARP 3/WARP 4

SCO UnixWare

UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0

Sun Microsystems

Solaris 10

Regulatory Approvals

Hardware

EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,

FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software

Microsoft WHQL Windows

Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment

Operation Temperature

0 to 60°C (32 to 140°F)

Operation Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension

120 x 110 mm

Bracket

Standard 121 mm

Bracket Space

1
