Logitech 939-001644 Rally Mounting Kit
Overview
RALLY MOUNTING KIT
Custom mounts for a sleek installation and secure cabling
- Securely position Rally Camera on wall or near ceiling
- Low-profile speaker brackets provide “floating” appearance
- Secure connections with robust cable retention brackets
A SLEEK, SECURE, FLEXIBLE MOUNTING SYSTEM
Achieve a streamlined installation of each Rally system component with
included brackets and mounting hardware. Camera bracket provides a secure,
stable wall mount above or below the display, or cleverly inverts for
near-ceiling installations. Mount speakers directly to the wall with low-profile
brackets. Position hubs on a wall or beneath a table with ventilated hardware,
then secure connections with the cable retention brackets for a professional
appearance.

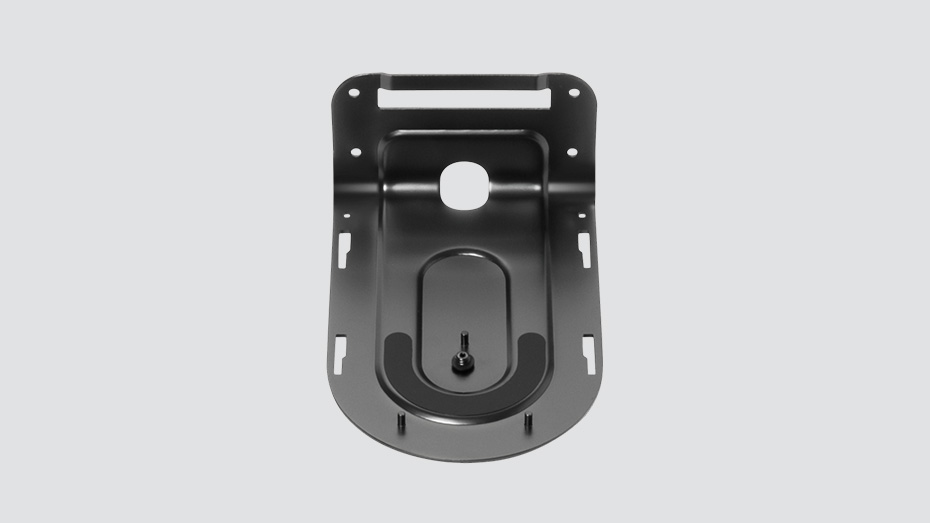

INVERTIBLE CAMERA BRACKET
The camera bracket provides flexibility to mount the camera on a wall
directly above or below the display for a natural line of sight and eye contact
with remote participants. For larger meeting spaces, the bracket can be inverted
to position the camera near the ceiling for a more expansive view. A tripod
screw and three-point pin system provides stability and helps keep the camera
steady when the lens is in motion.

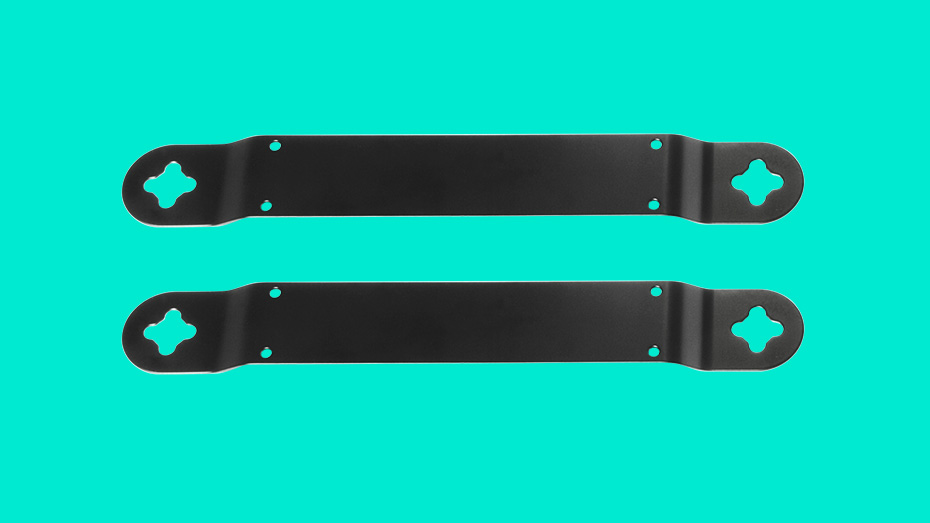

LOW-PROFILE SPEAKER BRACKETS
Each accessory in the Rally Mounting Kit is tailored to the system component
it supports. The two brackets that mount the Rally speakers on either side of
the display create a sleek “floating” appearance while enabling the speakers
themselves to deliver their full acoustic potential. The result: lifelike
conversational sound that helps bring people together even as the enabling
technology fades unobtrusively into the background.

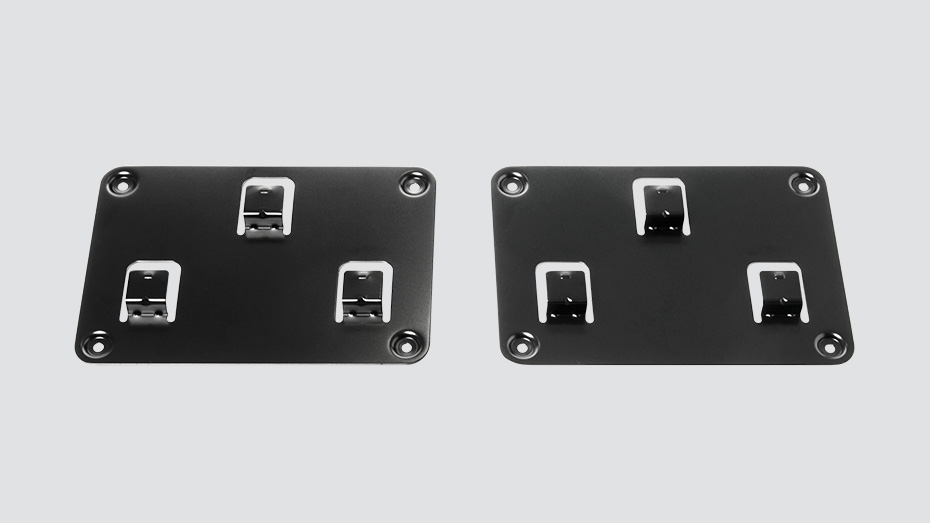

VENTILATED BRACKETS FOR DISPLAY HUB AND TABLE HUB
Two ventilated hub brackets provide versatile mounting options to position
the Display Hub and Table Hub on a wall or beneath a table. The brackets are
engineered with elevated standoffs to ensure ample air circulation for reliable
cooling.

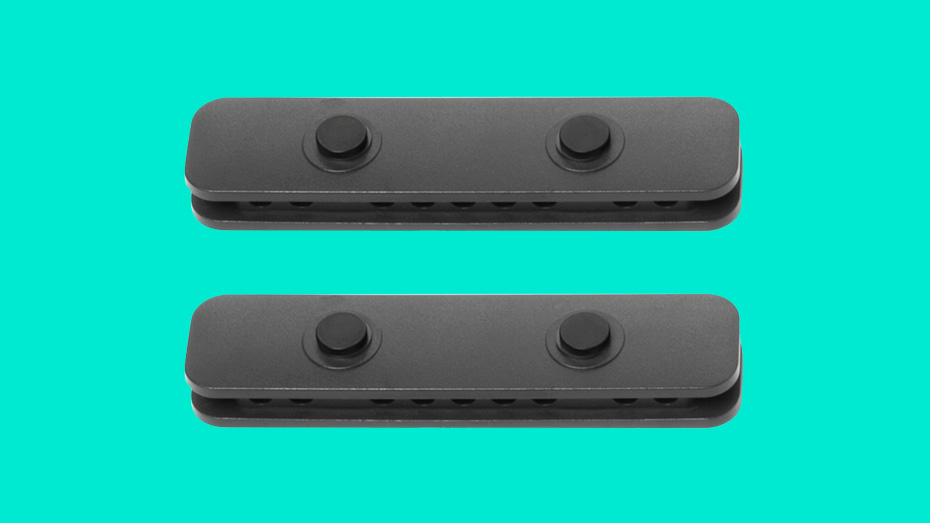

CABLE RETENTION BRACKETS
Guard against accidental disconnections and related trouble tickets while
keeping cables neat and tidy. Each two-piece bracket mounts near the Display Hub
and Table Hub to keep the power, A/V, and data cables securely plugged in.
Specifications
|
DIMENSIONS |
|
|
Speaker
Bracket |
|
|
Height
x Width x Depth |
36
mm x 266 mm x 8 mm |
|
|
|
|
Camera
Bracket |
|
|
Height
x Width x Depth |
63mm
x 109mm x 166mm |
|
|
|
|
Table
Hub Bracket |
|
|
Height
x Width x Depth |
12mm
x 164mm x 115mm |
|
|
|
|
Display
Hub Bracket |
|
|
Height
x Width x Depth |
12mm
x 164mm x 115mm |
|
|
|
|
Cable
Retainer |
|
|
Height
x Width x Depth |
23mm
x 164mm x 38mm |
|
|
|
|
SYSTEM
REQUIREMENTS |
Logitech
Rally |
|
|
Note:
Rally Mounting Kit is designed for Logitech Rally systems only. A
different mounting system is included with the standalone USB Rally
Camera. |
|
|
|
|
PACKAGE
CONTENTS |
Speaker
Bracket (2) |
|
|
Camera
Bracket |
|
|
Table
Hub Bracket |
|
|
Display
Hub Bracket |
|
|
Cable
Retainer (2) |
|
|
Fasteners
Documentation |
|
|
|
|
WARRANTY
INFORMATION |
2-Year
Limited Hardware Warranty |
|
|
|
|
PART
NUMBER |
PN:
939-001644 |
