Logitech 989-000430 Rally Mic Pod
Overview

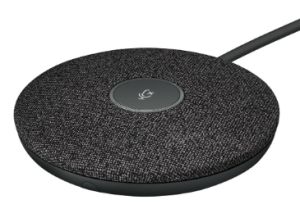

RALLY MIC POD
Modular microphones with RightSoundâ„¢ for Logitech Rally
- Auto-levels voices and suppresses noise for clear audio
- Convenient mute control and indicator light
- Premium materials look great in any room
GOOD LOOKS MEET GREAT SOUND
Boasting a sleek, low-profile design and premium materials, Rally Mic Pods
render remarkably clear, natural, conversational sound. Individual mic pods
contain multiple beamforming elements that focus on active speakers while
automatically eliminating acoustic distractions. Up to seven mic pods work
together to form a beamforming mic matrix with consistent audio coverage for
every seating position throughout larger meeting spaces.
Features
HEAR EVERY VOICE CLEARLY
With RightSoundâ„¢ technology and multiple beamforming elements in every
individual mic pod, the audio focus is always automatically on the active
speaker. A single mic pod provides coverage for up to ten people. Larger meeting
spaces can be provisioned with up to seven mic pods working in concert to
receive and transmit remarkably clear audio for every individual at the table.
SIMPLIFIED CABLING
Up to 7 Rally Mic Pods can be daisy-chained together with a single cable
connection to the Rally table hub. For U-shaped tables or single-wire cabling
through grommets, the Rally Mic Pod Hub accessory provides three connections for
optimal positioning and to bring mute control within easy reach.
PREMIUM, LOW-PROFILE DESIGN
Rally Mic Pods are elegant and deceptively small for their remarkable range
and sensitivity. As RightSound suppresses ambient background noise by applying
acoustic echo and noise reduction, non-slip pads beneath the mic pods help to
isolate the microphones from table vibrations (like keyboard taps). Advanced
materials resist fingerprints and stains. Plus, a red LED on top of each mic pod
provides visual confirmation when muted.
AN EQUAL VOICE
RightSound voice equalization and beamforming technologies mean you don’t
need to raise your voice to be heard. Rally Mic Pod listens for every voice, not
just the loudest ones, so you can hear and understand those with softer voices
or who are seated further away. Behind the scenes, the Rally table hub can
switch between acoustic beams up to 125 times/second to smoothly capture the
most lively conversations.
ENHANCED SENSITIVITY
Rally is designed from the ground-up for maximum sensitivity with minimal
interference. By putting speakers by the screen and microphones near the
participants, Rally offers an intuitive audio experience with naturally reduced
echo and interference. But that’s not all: Rally Speaker features a
patent-pending suspension system to prevent interference from vibration and
resonance. This means that Rally Mic Pod can offer enhanced sensitivity that
tabletop speakerphone designs can’t match.
Specification
DIMENSIONS |
|
Height
x Width x Depth |
0.83in
(21 mm) x 4.01 in (102 mm) x 4.01 in (102 mm) |
|
|
SYSTEM
REQUIREMENTS |
Logitech
Rally or Logitech Rally Plus |
|
Note:
Rally Mic Pods connect to the table hub included with Logitech Rally
systems, and are not compatible with the standalone USB Rally
Camera. |
RightSound
Technologies |
Machine
learning AI trained to distinguish human speech from other
sounds |
|
AEC
(Acoustic Echo Cancellation) |
|
VAD
(Voice Activity Detector) |
|
Background
noise suppression |
|
Auto-level
loud and soft voices |
|
RightSound
Mic Matrix |
|
Factory-paired,
very low distortion broadside beamforming algorithm steers the microphones
directly at the talker for the best voice pickup and noise
reduction |
|
Supports
up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active
talker |
|
Beam
focus refresh rate: 8ms (125 times/second) |
|
|
TECHNICAL
SPECIFICATIONS |
|
Pickup
range |
15
ft / 4.5m diameter |
|
Four
omnidirectional microphones forming eight acoustic
beams |
|
AEC
(Acoustic Echo Cancellation) |
|
VAD
(Voice Activity Detector) |
|
Background
noise suppression |
|
Mute
button with LED status indicator |
|
Captive
9.6 ft (2.95m) 12-pin cable |
|
Daisy
chain up to 7 Rally Mic Pods |
|
Frequency
response: 90Hz – 16kHz |
|
Sensitivity:
>-27dB +/-1dB @ 1Pa |
|
Microphone
data rate: 48 kHz |
|
Recommended
# of participants: |
|
Rally
(one Mic Pod): 10 |
|
Rally
Plus (two Mic Pods): 16 |
|
Additional
participants per Mic Pod: 6 |
|
Recommended
participants for Rally with 7 Mic Pods: 46 |
|
|
COMPATIBILITY
AND CERTIFICATIONS |
Certified
for Skype for Business and ready for Teams |
|
Zoom
Certified |
|
Certified
for Google® Hangouts Meet Hardware |
|
Microsoft
Cortana® certified |
|
Cisco
Jabber® and WebEx compatible |
|
Compatible
with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video
conferencing, recording, and broadcasting applications that support USB
devices |
|
|
PACKAGE
CONTENTS |
Rally
Mic Pod |
|
Documentation |
|
|
WARRANTY
INFORMATION |
2-Year
Limited Hardware Warranty |
|
|
PART
NUMBER |
PN:
989-000430 |
