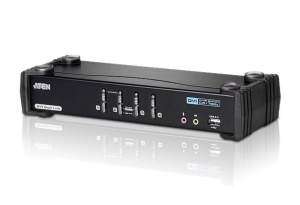

Aten CS1784A-AT-U 4-Port USB DVI Dual Link/Audio KVMP
Switch
Overview
The CS1784A USB DVI Dual Link KVMPâ„¢ Switch charts a revolutionary direction
in KVM switch functionality. It combines the capabilities of a 4-port KVM switch
with a 2-Port USB hub, while providing a DVI monitor interface and audio
support. Moreover it carries advanced features, such as nVidia 3D Vision ready
120Hz 3D display support, gaming keyboard compatibility and port
selection/switching using a mouse, aimed at giving you flexibility, convenience
and enjoyment.
Package Contents
- 1x CS1784A USB DVI Dual Link KVMPâ„¢ Switch
- 4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
- 1x Power Adapter
- 1x User Instructions
Features
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI
specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @
60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter
glasses to create a 3D environment with maximum resolution of up to 1920 x
1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up
display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch
will automatically switch to the next powered-on computer NEW!
- Console mouse port emulation/bypass feature that supports most mouse
drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming /
multimedia keyboards NEW!
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French
keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own

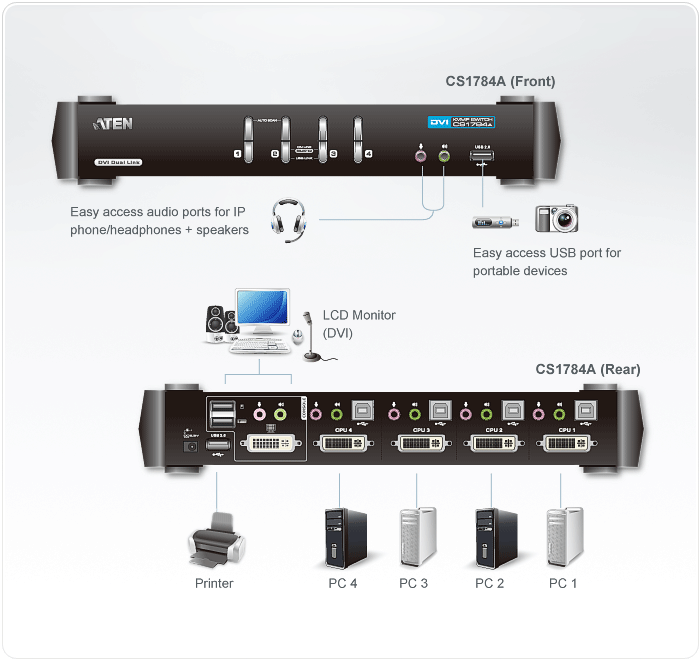

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Hotkey,
Pushbutton, Mouse |
|
|
|
|
Connectors |
|
|
Console
Ports |
1
x DVI-I Female (White) |
|
|
2
x USB Type A Female (rear panel) |
|
|
2
x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear
panel) |
|
|
2
x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear
panel) |
|
KVM
Ports |
4
x DVI-I Female (White) |
|
|
4
x USB Type B Female |
|
|
4
x 3.5mm Audio Jack Female (Green) |
|
|
4
x 3.5mm Audio Jack Female (Pink) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB Type A Female (1 x front panel, 1 x rear panel) |
|
|
|
|
Switches |
|
|
Power
Selected |
4
x Pushbutton |
|
|
|
|
LEDs |
|
|
USB
Link |
4
(Green) |
|
On
Line /Selected |
4
(Orange) |
|
|
|
|
Emulation |
|
|
Keyboard
/ Mouse |
USB |
|
Video |
DVI
Dual Link: 2560 x 1600 @ 60Hz; |
|
|
DVI
Single Link: 1920 x 1200 @ 60Hz |
|
Scan
Interval |
1–99
seconds (default: 5 secs.) |
|
Power
Consumption |
DC5.3V:5.91W:53BTU |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0-50°C |
|
Storage
Temperature |
-20-60°C |
|
Humidity |
0–80%
RH, Non-condensing |
|
|
|
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.93
kg ( 2.05 lb ) |
|
Dimensions
(L x W x H) |
27.00
x 8.80 x 5.55 cm |
|
|
(10.63
x 3.46 x 2.19 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
