Aten VM0202H-AT-U 2x2 4K HDMI Matrix
Switch
Overview
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification
features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps.
Engineered for the future trend of high-definition video switching, the VM0202H
supports computer and video signals at resolutions up to 4K.
The VM0202H matrix switch provides high performance routing of 2 HDMI video
sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition
Blue- ray players, home theater PCs and stand-alone streaming media players to
any 2 HDMI displays. The remote control and convenient front panel pushbuttons
allow you to efficiently cycle through HDMI source devices and displays, while
the front panel LEDs indicate the source device for each display at a
glance.
Page Contents
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x Power Adapter
1x IR Control
1x IR Receiver
1x User Instructions
Features
- Connects 2 HDMI sources to any 2 HDMI displays
- HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
- Supports computer and video resolutions up to 4K
- Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
- Supports long distance transmission at a distance up to 15 meters
- Multiple Control Methods- system management via front panel push buttons,
IR
- remote and RS- 232 control
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to
- communicate and respond to one remote control
- EDID Expert™ — Selects optimum EDID settings for smooth power- up, high-
quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable
connections
- All- metal casing
- Firmware upgradable
- Rack mountable

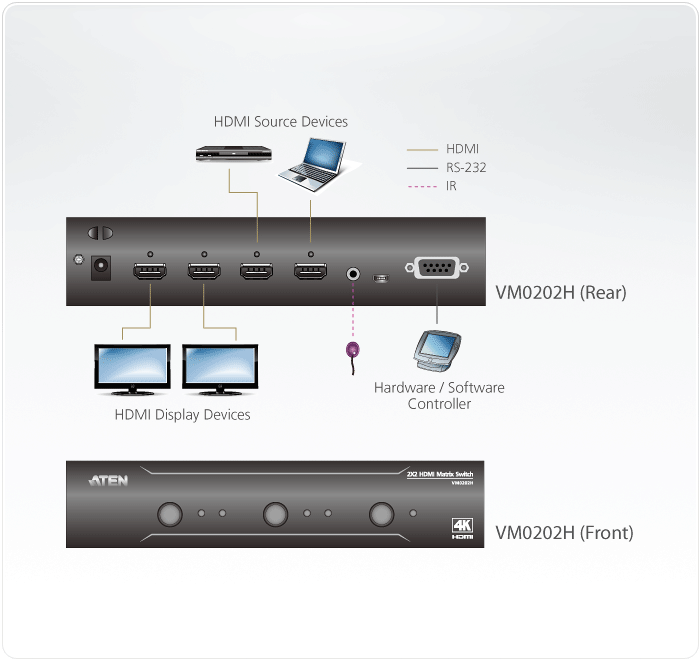

Diagram
Specifications
|
Video
Input |
|
Interfaces |
2 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
|
|
Video
Output |
|
Interfaces |
2 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
15
m |
|
|
|
Video |
|
Max. Data
Rate |
10.2 Gbps (3.4 Gbps Per
Lane) |
|
Max. Pixel
Clock |
340
MHz |
|
Compliance |
HDMI (3D, 4K, Deep
Color) |
|
HDCP 1.4 Compatible
|
|
Consumer Electronics
Control (CEC) |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:2:0); |
|
4096 x 2160 / 3840 x
2160 @ 30Hz (4:4:4) |
|
Max.
Distance |
Up to 15
m |
|
|
|
Control |
|
USB |
1 x Micro
USB |
|
F/W
upgrade |
|
RS-232 |
Connector: 1 x DB-9
Female (Black) |
|
Baud rate and protocol:
|
|
Baud Rate: 19200, Data
Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|
IR |
1 x Mini Stereo Jack
Female (Black) |
|
|
|
EDID
Settings |
EDID Mode: Default /
Port1 / Remix |
|
|
|
Carton
Lot |
5
pcs |
|
|
|
Physical
Properties |
|
Weight |
0.58 kg ( 1.28 lb
) |
|
Housing |
Metal |
|
Dimensions (L x W x
H) |
20.00 x 7.60 x 4.20 cm
|
|
(7.87 x 2.99 x 1.65
in.) |
|
Power |
|
Connectors |
1 x DC Jack
(Black) |
|
Consumption |
5VDC ;
4.3W |
|
|
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
|
|
|
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
|
|
|
Compatibility |
VM8804 |
|
VM7804 |
|
VS184A |
|
VS182A |
|
|
|
Relevant
Products |
UC232A |
