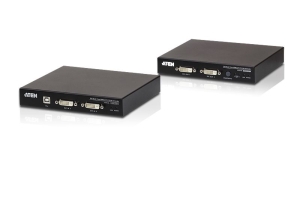

Aten CE624-AT-U USB DVI Dual View HDBaseTâ„¢ 2.0 KVM
Extender (1920 x 1200 @100 m or 150m)
Overview
The ATEN CE624 USB DVI Dual View HDBaseT 2.0 KVM Extender integrates the
latest HDBaseT 2.0 technologies to provide the most reliable transmission of
video, audio, USB and RS-232 signals available on the market. The CE624 delivers
high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and
RS-232 signals up to 100 meters from the source computer using a single Cat6/6a
cable. With a simple cable installation supporting various signals, the CE624 is
ideal for applications where convenient remote access is required in places such
as transportation control centers, medical facilities, industrial warehouses and
extended workstations.
Package Contents
- 1x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
- 1x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
- 2x DVI-D Cables (1.8m)
- 1x Pink Audio Jack Cable Sets (1.8m)
- 1x Green Audio Jack Cable Sets (1.8m)
- 1x USB Cable (1.8m)
- 2x Power Adapters
- 8x Foot Pads
- 2x Mounting Kits
- 1x User Instructions
Features
- Allows DVI Dual View access to a computer and KVM control from a remote
console
- HDBaseTâ„¢ 2.0 connectivity technology
- Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
- EDID Buffer for smooth power-up and the highest quality display
- Enhanced bit error detection and correction to resist signal
interference during high-quality video transmissions
- Long distance superior video quality
- HDBaseTâ„¢ Standard mode up to 1920 x 1200 @ 100 m
- HDBaseTâ„¢ Long Reach mode up to 1920 x 1080 @ 150 m (the resolution
is supported with single view only; dual-view resolution is up to 720p)
- Long Reach mode switch - switches between HDBaseTâ„¢ Standard and Long Reach
modes in a snap
- Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard,
mouse and peripherals
- Supports 2-channel PCM digital audio - ensuring high quality audio
transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- HDCP compatible

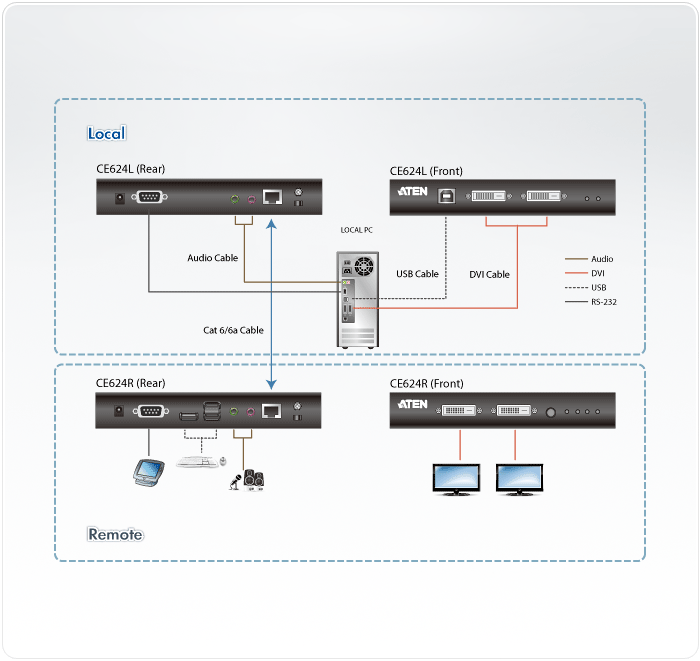

Diagram
Specifications
| Function |
CE624L |
CE624R |
| Connectors |
| KVM Ports |
2 x DVI-D Female (White)
1
x USB Type B Female (White)
1
x Mini Stereo Jack Female (Green)
1
x Mini Stereo Jack Female (Pink)
|
N/A |
| Console Ports |
N/A |
2 x DVI-D Female (White)
3
x USB Type A Female (White)
1
x Mini Stereo Jack Female (Green)
1
x Mini Stereo Jack Female (Pink) |
| RS-232 |
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
| Power |
1 x DC Jack with
locking |
1 x DC Jack with
locking |
| Unit To Unit |
1 x RJ-45 Female
(Black) |
1 x RJ-45 Female
(Black) |
| LEDs |
| Power |
1 (Green) |
1 (Green) |
| Link |
1 (Orange) |
1 (Orange) |
| Video Output |
N/A |
2 (Orange) |
| Switches |
| Long Reach Mode
Switch |
1 x Slide Switch |
1 x Slide Switch |
| Firmware Upgrade |
1 x Slide Switch |
1 x Slide Switch |
| Pushbuttons |
| Wakeup button |
N/A |
1 x Push button |
| Video |
Up to 1600x1200 &
1920x1200@90m (Cat 5e) / 100m (cat 6/6a)
1080P@100m |
Up to 1600x1200 &
1920x1200@90m (Cat 5e) / 100m (cat 6/6a)
1080P@100m |
| Power Consumption |
DC5V, 5.5W |
DC5V, 12.2W |
| Environmental |
| Operating
Temperature |
040C |
040C |
| Storage Temperature |
-2060C |
-2060C |
| Humidity |
080% RH,
Non-condensing |
080% RH,
Non-condensing |
| Physical
Properties |
| Housing |
Metal |
Metal |
| Weight |
0.80 kg ( 1.76 lb ) |
0.81 kg ( 1.78 lb
) |
| Dimensions (L x W x
H) |
17.42 x 15.94 x 2.88
cm
(6.86 x 6.28 x 1.13
in.) |
17.42 x 15.94 x 2.88
cm
(6.86 x 6.28 x 1.13
in.) |
