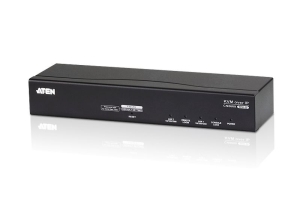

Aten CN8600-AT-U 1-Local/Remote Share Access Single Port
DVI KVM Over IP Switch (1920 x 1200)
Overview
The CN8600 DVI KVM over IP is a cost efficient over-IP device, which allows
remote access of digital video, and / or audio and virtual media via remote
control of a PC or workstation. The CN8600 enables Over IP capability by
connecting compatible ATEN DVI KVMand/orLCD console, such as the CS1768 (8-Port
USB DVI KVM Switch) or CL6700 (DVI LCD Console).
For user-friendly operation, a mini USB port on the rear panel is designed as
a Laptop USB Console (LUC) port or a Virtual Media port. No additional monitor,
keyboard or mouse is required locally for routine maintenance – simply use the
LUC port to connect a laptop, and access any computer connected to the switch
for easy on-site management. The CN8600’s Virtual Media function allows a user
to perform diagnostic testing, file transfers, or apply OS / applications
updates and patches from a remote console.
To ensure seamless connectivity, the CN8600 is equipped with dual LAN/dual
power functionality to keep operation in the server room smooth and efficient.
The CN8600 also supports speaker and microphone for use locally and remotely.
A Windows Client and a Java Client are available for remote access. They
allow IP connection and login from anywhere over the internet. In addition, ATEN
also provides an iOS APP - PadClient, whose intuitive interface makes it easy to
connect to the KVM over IP switch and control computers direct from your iPad.
Please visit the PadClient webpage for more information.
ATEN capitalizes on providing affordable and durable Over-IP server
management solutions and ensures that the equipment is worth the investment with
their dependability and operational efficiency. ATEN guarantees that your CN8600
investment is protected and delivers continuous quality performance.
Package Contents
- 1x CN8600 DVI KVM over IP
- 1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1x USB Cable (1.8 m/6 ft)
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Features
- Hardware
- Provides over-IP capability to DVI KVM switches that do not have built-in
over-IP functionality (*1)
- Local console provides USB keyboard and mouse support
- A mini USB port in the rear panel serves as a Virtual Media USB port, as
well as a Laptop USB Console (LUC) port
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Dual Power Supply for power backup
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and
VT100 based serial devices
- Virtual Media Support (*2)
- High video resolution – up to 1920 x 1200 @ 60Hz RB for both local and
remote consoles
- Enhanced fps (frames per second) throughput for crisp responsive video
display
- Audio Support – microphone and speakers are supported on the local and
remote console
- 1 Compatible KVM Switch: ATEN DVI Single Link KVM Switches
- 2 Some of the CN8600's features may not be supported, depending on the
functionality of the cascaded KVM switch. (For example,some switches do not
support virtual media.)
- Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- Console access right management
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Event Logging – the CN8600 can record all events that take place on it and
write them to a searchable database.
- Critical system events sent by email and SNMP trap; and Syslog support
- Firmware upgradable via remote access
- Access the CN8600 via a built-in serial viewer, or via third-party
software (such as PuTTY) for Telnet and SSH sessions
- Out of Band Support – access the CN8600 through its serial port using a
dial-up connection
- Port Share Mode allows multiple users to gain access to a server
simultaneously
- Local/Remote Share Mode conveniently grants shared or exclusive console
privilege
- Integration with ATEN CC2000 Management Software
- Integration with ATEN CCVSR Video Session Recording Software*
- PON support to control PN0108
- DDNS–allows mapping of a dynamic IP address assigned by a DHCP server to a
host name
- Export/import user account and configuration settings
- Enable/disable browser operation
- IPv6 capable
- Console Lock – Flexible Console access right management
- Supports recording computer operations accessed via remote sessions.
- Ease-to-Use Interface
- Browser-based and AP GUIs offer a unified multi language interface to
minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OX X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform
administrative tasks without pre-installed Java software package requirements
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel with configurable function for quick launch
- Advanced Security
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS and MS Active
Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure
user slogging in from browsers
- Flexible encryption design allows users to choose any combination of DES,
3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media
data encryption
- Supports IP/MAC Filter
- Supports password protection
- Private CA
- Virtual Media
- Virtual media enables file applications, OS patching, software
installation and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC
hard drives and ISO images
- Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data
transfer speed; monochrome color depth, threshold and noise settings can be
adjusted for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse DynaSync™ – automatically synchronizes the local and remote mouse
movements
- Supports Exit Macros
- BIOS-level access

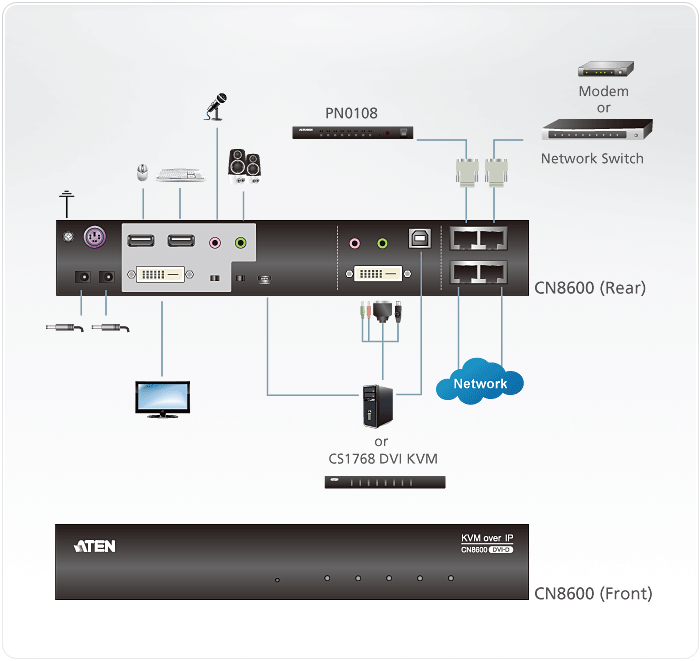

Diagram
Specifications
|
Connectors |
|
|
Console
Ports |
2
x USB Type A Female (White) |
|
|
1
x DVI-D Female (White) |
|
|
1
x Mini Stereo Jack Female (Green) |
|
|
1
x Mini Stereo Jack Female (Pink) |
|
KVM
Ports |
1
x USB Type B Female (White) |
|
|
1
x DVI-D Female (White) |
|
|
1
x Mini Stereo Jack Female (Green) |
|
|
1
x Mini Stereo Jack Female (Pink) |
|
LAN
Ports |
2
x RJ-45 Female |
|
Virtual
Media |
1
x USB Mini-B Female |
|
Power |
2
x DC Jack |
|
PON |
1
x RJ-45 Female |
|
Serial |
1
x RJ-45 Female |
|
Control |
1x
PS/2 Female |
|
|
|
|
Switches |
|
|
Reset |
1
x Semi-recessed pushbutton (Black) |
|
USB
Function Selection |
1
x Slide switch (Black) |
|
Console
Lock |
1
x Slide switch (Black) |
|
|
|
|
LEDs |
|
|
Console
Status |
1
(Green) |
|
10/100/1000
Mbps |
2
(Orange/ Orange+Green /Green) |
|
Remote
Login |
1
(Green) |
|
Power |
1
(Green) |
|
|
|
|
Emulation |
|
|
Keyboard
/ Mouse |
USB |
|
|
|
|
Video |
Local
console - 1920 x 1200 @ 60 Hz RB |
|
|
Remote
- 1920 x 1200 @ 60 Hz RB |
|
|
|
|
Power
Consumption |
DC5.3V:5.56W:30BTU |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0
- 50˚C |
|
Storage
Temperature |
-20
- 60°C |
|
Humidity |
0
- 80% RH, Non-condensing |
|
|
|
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.88
kg ( 1.94 lb ) |
|
Dimensions
(L x W x H) |
26.00
x 7.64 x 4.20 cm |
|
|
(10.24
x 3.01 x 1.65 in.) |
|
|
|
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
