All stock codes associated to this product
CS1732BATU, CS1732B-AT-U

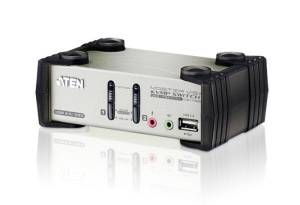

Aten CS1732B-AT-U 2-Port PS/2-USB VGA/Audio KVMP Switch
With OSD
Features
- Superior video quality; 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, multilingual OSD (On
Screen Display), hotkeys and mouse
- Supports computers with PS/2 or USB keyboard and mouse configurations
- Video DynaSyncâ„¢ - stores the console monitor's EDID (Extended Display
Identification Data) to optimize display resolution
- 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls two computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse
configurations
- Audio enabled - full bass response provides a rich experience for 2.1
surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone
users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On
Screen Display), hotkeys and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver
and multifunction mice
- Video DynaSyncâ„¢ - stores the console monitor's EDID (Extended Display
Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
Package Contents
- 1x 2-Port USB 2.0 KVMPâ„¢ Switch
- 2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
- 2x OSD/Hotkey Stickers
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x User Instructions
Overview
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM
switch, it allows users to access two computers from a single keyboard, monitor,
and mouse console. There are four methods to obtain instant access to any
computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Diagram
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Hotkey,
Pushbutton, OSD, Mouse |
|
Connectors |
|
|
Console
Ports |
2
x USB Type A Female (Black) |
|
|
1
x HDB-15 Female (Blue) |
|
|
2
x 3.5mm Audio Jack Female (Green) |
|
|
2
x 3.5mm Audio Jack Female (Pink) |
|
KVM
Ports |
2
x SPHD-15 Female (Yellow) |
|
|
2
x 3.5mm Audio Jack Female (Green) |
|
|
2
x 3.5mm Audio Jack Female (Pink) |
|
Firmware
Upgrade |
1
x 4-conductor 3.5mm Jack (Black) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB Type A Female (White) |
|
Switches |
|
|
Selected |
2
x Pushbutton |
|
LEDs |
|
|
Online
/ Selected |
2
(Orange) |
|
USB
Link |
2
(Green) |
|
Emulation |
|
|
Keyboard
/ Mouse |
PS/2;
USB |
|
Video |
2048
x 1536 @ 60Hz; DDC2B |
|
Scan
Interval |
1-255
Seconds (Default: 5 sec.) |
|
Power
Consumption |
DC5.3V:2.53W:37BTU |
|
Environmental |
|
|
Operating
Temperature |
0-50°C |
|
Storage
Temperature |
-20-60°C |
|
Humidity |
0-80%
RH, Non-condensing |
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.55
kg ( 1.21 lb ) |
|
Dimensions
(L x W x H) |
14.00
x 8.80 x 5.55 cm |
|
|
(5.51
x 3.46 x 2.19 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
