EATON 9E20KI 9E 20000VA Tower UPS - Online Double Conversion, 16000W

IMG 1 of 1
Our Price:
$12,150.55
RRP:
$16,896.00
You Save:
$4,745.45
or quickly purchase this product
Backorder
Part Number:
441287
(?) Brand:
EATON Web Site
Manuf No:
9E20KI
Shipping Weight:
160 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
9E20KI, 2741768, PW87508

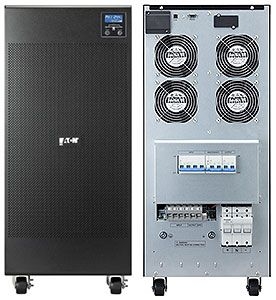

Eaton 9E20KI 9E UPS Tower



Features

  • Online double conversion topology
  • Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
  • Provides more real power (watts) to protect more equipment with a 0.8 power factor
  • Internal bypass and maintenance bypass are available as standards
  • Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
  • XL models with internal supercharger for extra-long runtime
  • Communication through USB, RS232 serial or over the network with an optional network card
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • CE compliance certified by external agency (CB report from the TUV)

Overview

Eaton 9E UPS

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

Specifications

General

Topology

Online double conversion

Configuration

Tower

Part Number

9E20Ki

Rating (VA/Watts)

20000/16000

Dimensions (H x W x D, mm)

815.5 x 350 x 706

Weight (kg)

159.9

Warranty

1 year

Electrical Input

Connection

Hardwired - see manual for terminal block layout

 Hardwired - example layout only

Input Voltage Range

176-276V without derating (up to 110-276V with derating)

Nominal Voltage

220/230/240V

Frequency

50/60 Hz autoselection

Frequency Range

45-66 Hz

Short Circuit Current

273 A

Electrical Output

Voltages

220V/230V/240V ±2 %

Voltage THD

<3%

Outlets

Hardwired - see manual for terminal block layout

 Hardwired - example layout only

Overload Capacity

105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms

Efficiency (Normal Mode)

Up to 93% in Online mode, 97% in ECO mode

Output Frequency

50/60 Hz autoselect

Communications

Communication Ports

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)

Communication Slot

1 slot for Network-MS, ModBus-MS or Relay-MS cards

Power Management Software

Intelligent Power Software

Environmental & Standards

Audible Noise

<55dB

Operating Temperature

0 to 40°C

Safety markings

IEC/EN 62040-1

EMC Markings

IEC/EN 62040 -2

Approvals

CE, CB report (TUV)
