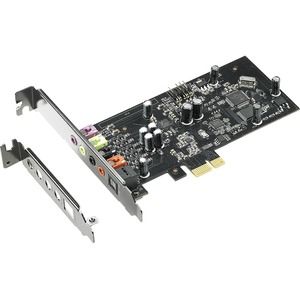

Asus XONAR SE Gaming Audio Card
Overview
Xonar SE 5.1 PCIe gaming sound card with 192kHz/24-bit hi-res audio
and 116dB SNR
- 192kHz/24-bit, 5.1-channel playback and 300ohm headphone amp for enhanced
bass and clear, detailed sound
- Hi-fidelity, immersive sound with a 116dB signal-to-noise ratio (SNR)
- Xonar Audio Center software provides a user-friendly experience via an
inviting and intuitive interface
- Exclusive Hyper Grounding Technology ensures effective noise-blocking, and
reduced audio distortion and cross-over interference
Sharpen your hearing. Dominate all
Xonar SE is a PCIe gaming sound card built with high-quality components to
satisfy gamers who demand exceptional sound for the best gaming and multimedia
experiences. Xonar SE delivers 5.1-channel, 192kHz/24-bit hi-res audio output
with a high 116dB signal-to-noise ratio (SNR), and comes with a built-in 300ohm
headphone amplifier that provides rich, detailed sound and defined bass.
Immersive audio optimized for gaming
Enjoy 192kHz/24-bit hi-res audio in cinematic, 5.1-channel surround
With up to 5.1-channel output and support for 192kHz/24-bit hi-res audio,
Xonar SE lets you enjoy truly cinematic sound while gaming, watching movies and
listening to music.
116dB signal-to-noise ratio (SNR)
Xonar SE delivers an exceptional audio signal with a 116dB signal-to-noise
ratio (SNR) for 32-times greater clarity than average onboard audio chips.
Integrated headphone amplifier reveals every audio detail
Since many gamers choose to play wearing headphones, Xonar SE features a
high-quality, 300ohm headphone amplifier that delivers detailed, immersive sound
with punchy, defined bass.
Exclusive sound-insulation technology
Hyper Grounding technology
Exclusive ASUS Hyper Grounding PCB fabrication ensures strong signal
insulation to reduce distortion and interference, also known as component
crosstalk.
Handy audio controls
Take complete control with Xonar Audio Center
Xonar SE features the Xonar Audio Center software suite for full control over
every aspect of sound, from equalization (EQ) to 5.1-speaker level-balancing,
and provides a user-friendly experience via an inviting and intuitive interface.
Works perfectly with Windows 10
Xonar SE is fully compatible with Windows 10 and features Windows Hardware
Quality Labs (WHQL) support, ensuring a great audio experience with minimal
setup hassles.
Bundled low-profile bracket to fit a mini chassis
Xonar SE is only half the height of regular cards, so it comes with an
interchangeable metal bracket to fit smaller cases.
Specifications
|
Audio
Interface |
PCI
Express |
|
Audio
Performance |
|
|
Output
Signal-to-Noise Ratio (A-Weighted) (Front-out) : |
116
dB |
|
Input
Signal-to-Noise Ratio (A-Weighted) : |
110
dB |
|
Output
THD+N at 1kHz (Front-out) : |
0.00251
%(-92 dB) |
|
Input
THD+N at 1kHz : |
0.00251
%(-92 dB) |
|
Frequency
Response (-3dB, 24bit/192KHz input) : |
10
Hz to 87 KHz |
|
Output/Input
Full-Scale Voltage : |
Headphone
output : 2 Vrms (5.65 Vp-p) |
|
Chipset |
Audio
Processor :C-Media USB2.0 6620A High-Definition Sound Processor (Max.
192KHz/24bit) |
|
Digital-to-analog
Converter(DAC) |
Realtek
S1220A (120dB SNR, Max. 192KHz/24bit) |
|
Sample
Rate and Resolution |
|
|
Analog
Playback Sample Rate and Resolution : |
44.1K/48K/96K/192KHz
@ 16bit/24bit |
|
Analog
Recording Sample Rate and Resolution : |
44.1K/48K/96K/192KHz
@ 16bit/24bit |
|
S/PDIF
Digital Output : |
44.1K/48K/96K/192KHz
@ 16bit/24bit |
|
ASIO
2.2 Driver Support : |
44.1K/48K/96K/192KHz
@ 16bit/24bit |
|
Connectivity |
|
|
Analog
Output |
3
x 3.5 mm jack (1/8") (Front out/Side out/Rear out) |
|
Analog
Input |
1
x 3.5 mm jack (1/8") (Line-in/Mic-in) |
|
Digital |
1
x S/PDIF out (1 x Optical (Toslink)) |
|
|
1
x Front-Panel Header |
|
Special
Features |
Smart
Volume Normalizerâ„¢ |
|
|
Xear
3Dâ„¢ Virtual Speaker Shifter |
|
|
Xear
Surroundâ„¢ |
|
|
Magic
Voiceâ„¢ |
|
Operating
System |
Windows®
10 |
|
|
Windows®
8.1 |
|
|
Windows®
7 |
|
Accessories |
Low-profile
bracket x 1 |
|
|
Driver
CD x 1 |
|
|
Quick
start guide x 1 |
