All stock codes associated to this product
KE150VULR, 9352399007261

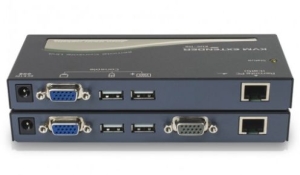

Serveredge KE150VULR USB VGA KVM Console
Extender
Features
- Supports USB keyboard and USB mouse
- Connects the Computer Unit and Station Unit via Category 5 UTP cable
- Remotely locates the keyboard, mouse and monitor up to 150m from a
computer
- Supports USB console
- Supports both PS/2 and USB PC or Server
- Video compensation can be adjusted by hotkey to ensure the optimum signal
quality
- Synchronizes the video resolution between the attached computers via
hotkeys
- Easy to get and install the standard cable at lower cost
- Simple indication makes operation user-friendly
- Locates the computer away from your desk and work area, saving you
valuable space
- Allows two users to share a single computer in both local and remote areas
- Applicable for one console to manage two computers locally and remotely
- Beeps confirmation for key control makes the operation easier and
cross-checked
- Supports most of mice such as M/S IntelliMouse (Pro), Explorer, Optical,
etc
- Compatible with XGA, VGA, and SVGA system
Product Description
The Serveredge USB KVM Extender consists of a Computer Unit and a Station
Unit that enables you to locate a keyboard/monitor/mouse setup up to 150 meters
away from a computer or KVM switch using an inexpensive Category 5 UTP
(unshielded twisted pair) cable. This provides a convenient way to remotely
access a computer located in a secure or not easily accessible environment.
The KVM Extender is designed to enable one computer to be controlled by one
or two users. A single console can control two computers locally and remotely.
This is the ideal solution for factories, construction sites etc, where
computers in protected environments need to be accessed.
With a variety of models to choose from, you can economically increase
flexibility and meet your needs for USB-Ready and PS/2 systems. No software or
dip switches are required, just plug and play. With one push button, two LED
indicators and simple hotkey commands, you can manage this device with ease.
Specification
|
|
Console
Unit |
Computer
Unit |
|
Unit
Connection |
|
RJ45
x 1 |
|
Keyboard
/ Mouse |
USB-A
x 2 |
USB-A
x 2 |
|
Video |
VGA
Female x 1 |
VGA
Female x 2 |
|
|
(Connect
to monitor) |
(Connect
to computer) |
|
Push
Button |
n/a |
Control
Status Selection |
|
Hotkey
Control |
|
Yes |
|
Video
Resolution |
|
1280
x 1024 @ 150m |
|
Power
Consumption (Max.) |
|
9V
DC, 500mA |
|
H
x W x D (mm) |
|
20
x 156 x 65 (per unit) |
