All stock codes associated to this product
PS-SPR-0650NHSABA-1, PSSPR0650NHSABA1

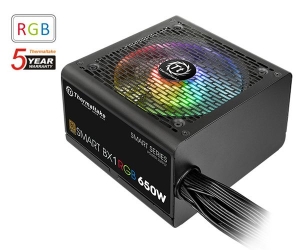

Thermaltake PS-SPR-0650NHSABA-1 Smart BX1 RGB 650W
Power Supply
Overview
Smart BX1 RGB 650W
Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available
in 550W, 650W, and 750W models. The preinstalled 10 LED RGB fan provides
excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a
built-in memory function, which saves the colors applied and insure the same
color selection every time you boot your PC.
Comes with premium components, stable continuous power output at 40?, and
ample 5-year warranty, its near silent operation, trouble free installation and
reliable performance have made itself satisfy the market where value-oriented
users are looking for a power supply with advanced features and aesthetic
appeal.
10 RGB LEDs Preinstalled
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7
colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination
modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.
* All images are for reference only; actual specification and lighting
effects are based on the real product.
One Button to Your Desired Color
Adding personal appeal to your build has never been so easy by just pressing
one RGB lighting button! There is also a built-in memory function to save the
color applied and insure the same color selection every time you boot your PC.
Ultra Quite 120mm Hydraulic Bearing Fan
Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to
guarantee superior cooling performance and silent operation.
80 mV Low Ripple Noise
All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V
from 0% to 100% load to ensure a high quality power supply. Low ripple noise
will keep your performance-critical components, such as high-end graphics cards,
to operate reliably for longer.
High Quality Japanese Main Capacitor
Greatly improves the durability and offers the highest stability and
reliability.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC
components.
Multiple Connectors
Soft black cables come with sleeve cabling design to make cable installation
an easy task while powering the system at an advantageous voltage.
80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BX1 RGB series saves energy through its high energy efficiency up to
88% and is certified to 80 PLUS Bronze. It has been optimized to work with all
generations of Intels processors to achieve maximum energy saving.
RGB Lighting Gives Best Aesthetics for All Chassis
Smart BX1 RGB Series is the best idea for users to go with when they are
looking for an RGB PSU that permits remarkable functionality and aesthetics in
all cases.
Specifications
|
Model |
SP-650AH2NKB |
|
Type |
ATX
12V v2.4 and EPS v2.92 |
|
Max.
Output Capacity |
650W |
|
Peak
Output Capacity |
780W |
|
Model |
SP-650AH2NKB |
|
Type |
ATX
12V v2.4 and EPS v2.92 |
|
Max.
Output Capacity |
650W |
|
Peak
Output Capacity |
780W |
|
Color |
Black |
|
Dimension
W / H / D |
150mm(W)
x 86mm(H) x 140mm(D) |
|
PFC
Power Factor Correction |
Active
PFC |
|
Power
Good Signal |
100-500
msec |
|
Hold
Up Time |
>
16msec at 70% of full load |
|
Input
Current |
12A
max. |
|
Input
Frequency Range |
50Hz
- 60Hz |
|
Input
Voltage |
100V
– 240V~ |
|
Operating
Temperature |
5°C
to + 40°C |
|
Operating
Humidity |
20%
to 85%, non-condensing |
|
Storage
Temperature |
-40°C
to + 55°C |
|
Storage
Humidity |
10%
to 95%, non-condensing |
|
Cooling
System |
12cm
Fan Hub |
|
Efficiency |
Meet
80 PLUS®Bronze at 115Vac input. |
|
MTBF |
100,000
hrs minimum |
|
Safety
Approval |
CE/CB/TUV/
UL/ FCC/ BSMI |
|
PCI-E
6+2pin |
2 |
|
Protection |
OVP,
OPP, SCP |
|
MTBF |
100,000
hrs minimum |
|
Safety
Approval |
CE/CB/TUV/
UL/ FCC/ BSMI |
|
PCI-E
6+2pin |
2 |
|
Protection |
OVP,
OPP, SCP |
