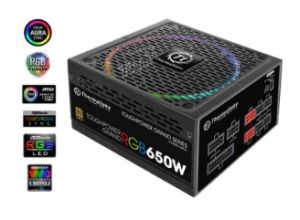

Thermaltake PS-TPG-0650FPCGAU-S Toughpower Grand RGB
650W Gold Fully Modular Power Supply
Overview
Toughpower Grand RGB 650W Gold Fully Modular
Thermaltake, as the pioneer who incorporates RGB lights into PSU, has
launched the Thermaltake Toughpower Grand RGB Gold Series, coming with a
pre-installed, patented Riing 14 RGB fan with 5 lighting modes to choose from
and built-in memory.
Featuring capacities ranging from 650W to 850W and 80 PLUS Gold
certification, Toughpower Grand RGB Series adopts the highest quality components
and fully modular design that always accommodate any mainstream build under any
circumstances.
One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among an
RGB Cycle with variants including Solid Red, Green, Blue, White, and a LED Off
mode. The fan is also constructed with a built-in memory function, saving the
color applied and insuring the same color selection every time you boot your PC.
Power Supply Fan Face-Up Placement for Better Cooling
With the face-up placement of the fan, users can freely gaze upon their
patented RGB fan and at the same time obtaining additional performance by using
the fan as a additional exhaust mechanism, repelling unwanted heat from your
chassis.
As the thermal image testing shown, the temperature of PSU and computer
system will decrease around 3°C (5.4 °F) by placing PSU face-up.
Riing 14 RGB Fan with Concentrated Compression Fan Blade
Riing 14 RGB fan blade is designed for high static pressure requirements of
demanding applications; the concentrated compression blade is engineered to
focus the weaker, inner circle of air outward, allowing the outer section to
pressurize the air. The fan blades are optimized to enhance static pressure for
an impressive cooling performance. Hydraulic bearings for silent operation
guarantee ultra-low noise, and the anti-vibration mounting system strengthens
the product’s stability during operation. Moreover, In-mold injection
anti-vibration rubber pads provide hassle-free usage for 80% protection
coverage, including all four corners.
Ultra Quiet Smart Zero Fan
Smart Zero Fan ensures zero noise when the fan operates below 20% working
load to minimize audible noise.
The fan will operate when the power supply working load over 20%. A switch is
provided for those who prefer the fan to spin constantly.
< 30 mV Low Ripple Noise
All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V
from 0% to 100% load to ensure a high quality power supply. Low ripple noise
will keep your performance-critical components, such as high-end graphics cards,
to operate reliably for longer.
Extremely Strict Voltage Regulation < ±2%
The voltage regulation of the PSU is set to no more than ±2% for major rails
to meet the highest performance. The strict voltage regulation of the Toughpower
Grand RGB Gold is better than Intel’s standard ±5% for major rails and ±10% for
-12V.
100% High Quality Japanese 105°C/221°F Capacitors
100% high quality 105 °C (221 ° F) Japanese brand capacitors which greatly
improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
|
AC INPUT |
Input Voltage: 100V-240V~ |
|
Input Current: 10A |
|
Frequency: 50Hz-60Hz |
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
|
|
|
|
|
|
|
Max Output Current |
22A |
22A |
54.2A |
0.3A |
3A |
|
Max Output Power |
120W |
650W |
3.6W |
15W |
|
Total Power |
650W |
Toughpower Grand RGB 650W Gold is equipped with a powerful single +12V rail,
eliminating the limitations by voltage distributions, delivering the power your
CPU and VGA demand in any situations. Besides, with DC to DC design, the unit
optimizes maximum energy harvest for computer systems, providing the best
compatibility, conversion efficiency and stable voltage output.
Fully Modular Low-Profile Flat Cable
Fully modular Toughpower Grand RGB 650W Gold offers cable selection for users
while powering the system at an advantageous voltage. Low-profile flat black
cables can make cable management easier, reduce clutter and increase airflow
inside the chassis.
80 PLUS Gold Certified and Skylake Ready
Deliver up to 90% efficiency under real world load conditions to promise
lowest power losses. Additionally, Toughpower Grand RGB 650W Gold has been
optimized to work with Intel’s latest, Sixth-generation Skylake processors to
achieve maximum energy saving.
RGB Lighting Provides Best Aesthetics for All Chassis
Toughpower Grand RGB Gold Series is the best idea for users to go with when
they are looking for an RGB PSU which permits remarkable functionality and
aesthetics in all cases, especially Open Frame or Tower cases.
- All images are for reference only; actual specification and lighting
effects are based on the real product.
- The electrical test result may vary depending on the test conditions and
environment.
Specifications
|
Model |
TPG-650AH3FSG-R |
|
Type |
ATX
12V v2.4 and EPS v2.92 |
|
Max.
Output Capacity |
650W |
|
Peak
Output Capacity |
780W |
|
Color |
Black |
|
Dimension
W / H / D |
150mm(W)
x 86mm(H) x 160mm(D) |
|
PFC
Power Factor Correction |
Active
PFC |
|
Power
Good Signal |
100-500
msec |
|
Hold
Up Time |
>
16msec at 100% of full load |
|
Input
Current |
10A |
|
Input
Frequency Range |
50Hz
- 60Hz |
|
Input
Voltage |
100V
– 240V~ |
|
Operating
Temperature |
0°C
to + 50°C |
|
Operating
Humidity |
20%
to 90%,non-condensing |
|
Storage
Temperature |
-40°C
to + 70°C |
|
Storage
Humidity |
20%
to 95%, non-condensing |
|
Cooling
System |
14cm
hydraulic bearing fan |
|
Efficiency |
Meet
80 PLUS®Gold at 115Vac input. |
|
MTBF |
120,000
hrs minimum |
|
Safety
Approval |
CE/cTUVus/TÃœV
SÃœD/FCC/CCC/BSMI/EAC |
|
Protection |
OVP,SCP,OPP,UVP,OTP,OCP |
|
PCI-E
Connector |
4 |
