All stock codes associated to this product
SRT3000RMXLI-NC, SRT3000RMXLINC, 3336032, SRT3000RMXLINC., SRT3000RMXLI-NC., UPASRT3000RMXLINC, UPA-SRT3000RMXLI-NC, 731304327592

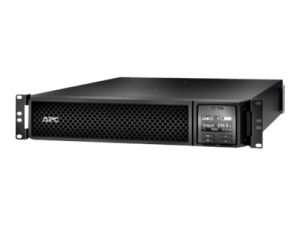

APC SRT3000RMXLI-NC Smart-UPS SRT 3000VA RM 230V with
Network Card
Features
High density, double-conversion on-line power protection with scalable
runtime
Includes:CD with software,Documentation CD,Installation guide,Network
Management Card,Rack Mounting brackets,Rack Mounting support rails,USB
cable,Warranty card
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive
maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power
conditions to achieve high operating efficiency without sacrificing protection
Green mode
Patent-pending operating mode that bypasses unused electrical components in
good power conditions to achieve very high operating efficiency without
sacrificing any protection.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters
and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to
rack-mount environment.
Smart-UPS On-Line Features & Benefits
Serviceability
Audible alarms
Provides notification of changing utility power and UPS power conditions
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and
replacements of the batteries reducing Mean Time to Repair (MTTR)
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component
replacement.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to
be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Adaptability
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to
the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to
rack-mount environment.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
Marketing Features
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software
for convenient monitoring and control, safe operating system shutdown, and
innovative energy management capabilities.
Low operating and maintenance costs with proven reliability and
intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery
performance and life through intelligent, precision temperature compensated
charging. Automatic self tests insure battery reliability and warn customers in
advance of battery replacement. Convenient, easy to connect, hot-swappable
battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data
protected and available.
Network grade power conditioning protects from damaging surges and disruptive
noise. The double conversion architecture provides tight voltage regulation,
frequency regulation ,and zero transfer time to battery during power events.
Peace of mind that comes with full equipment compatibility and
reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers
using active power factor corrected (PFC) power supplies. Safety agency tested
and approved means that you can deploy Smart-UPS with confidence that they meet
or exceed the industry’s most rigorous standards.
Availability
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power
overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility
power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery
temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent,
precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are
being replaced
Protection
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and
voltage conditions without using the battery.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on
Wall Tap SKUs)
Safety-agency approved
Ensures the product has been tested and approved to work safely with the
connected service provider equipment and within the specified environment.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator
power is used.
Cold-start capable
Provides temporary battery power when the utility power is out.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power
disturbances.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and
cabling.
Specifications
|
Output |
|
|
Output
power capacity |
2.7
KWatts / 3.0 kVA |
|
Max
Configurable Power (Watts) |
2.7
KWatts / 3.0 kVA |
|
Nominal
Output Voltage |
230V |
|
Output
Voltage Note |
Configurable
for 220 : 230 or 240 nominal output voltage |
|
Output
Voltage Distortion |
Less
than 2% |
|
Output
Frequency (sync to mains) |
50/60Hz
+/- 3 Hz |
|
Other
Output Voltages |
220,
240 |
|
Load
Crest Factor |
3:01 |
|
Topology |
Double
Conversion Online |
|
Waveform
type |
Sine
wave |
|
Output
Connections |
(8)
IEC 320 C13 (Battery Backup) |
|
|
(2)
IEC 320 C19 (Battery Backup) |
|
|
(2)
IEC Jumpers (Battery Backup) |
|
Bypass |
Internal
Bypass (Automatic and Manual) |
|
|
|
|
Input |
|
|
Nominal
Input Voltage |
230V |
|
Input
frequency |
40
- 70 Hz (auto sensing) |
|
Input
Connections |
British
BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P |
|
Cord
Length |
2.44meters |
|
Input
voltage range for main operations |
160
- 275V |
|
Input
voltage adjustable range for mains operation |
100
- 275 (half load)V |
|
Number
of Power Cords |
1 |
|
Other
Input Voltages |
220,
240 |
|
|
|
|
Batteries
& Runtime |
|
|
Battery
type |
Maintenance-free
sealed Lead-Acid battery with suspended electrolyte :
leakproof |
|
Included
Battery Modules |
1 |
|
Typical
recharge time |
3hour(s) |
|
Nominal
Battery Voltage |
96V |
|
Replacement
Battery |
APCRBC152 |
|
Expected
Battery Life (years) |
5-Mar |
|
RBC
Quantity |
1 |
|
Extendable
Run Time |
1 |
|
Extended
Run Options |
APC-Smart-UPS-SRT-3000VA-RM-230V-Network-Card |
|
Runtime |
View
Runtime Graph |
|
|
View
Runtime Chart |
|
Efficiency |
View
Efficiency Graph |
|
|
|
|
Communications
& Management |
|
|
Interface
Port(s) |
RJ-45
10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
|
Pre-Installed
SmartSlotâ„¢ Cards |
AP9631 |
|
Control
panel |
Multi-function
LCD status and control console |
|
Audible
Alarm |
Audible
and visible alarms prioritized by severity |
|
Emergency
Power Off (EPO) |
Yes |
|
|
|
|
Surge
Protection and Filtering |
|
|
Surge
energy rating |
340Joules |
|
Filtering |
-- |
|
|
|
|
Physical |
|
|
Maximum
Height |
85mm,
8.5CM |
|
Maximum
Width |
432mm,
43.2CM |
|
Maximum
Depth |
635mm,
63.5CM |
|
Rack
Height |
2U |
|
Net
Weight |
31.3KG |
|
Shipping
weight |
39.92KG |
|
Shipping
Height |
246mm,
24.6CM |
|
Shipping
Width |
599mm,
59.9CM |
|
Shipping
Depth |
871mm,
87.1CM |
|
Color |
Black |
|
Units
per Pallet |
6 |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0
- 40 °C |
|
Operating
Relative Humidity |
0
- 95 (non-condensing) % |
|
Operating
Elevation |
0-3000meters |
|
Storage
Temperature |
-15
- 45 °C |
|
Storage
Relative Humidity |
0
- 95 (non-condensing) % |
|
Storage
Elevation |
0-15000meters |
|
Audible
noise at 1 meter from surface of unit |
55.0dBA |
|
Online
thermal dissipation |
703.0BTU/hr |
|
Protection
Class |
IP
20 |
|
|
|
|
Conformance |
|
|
Approvals |
CE,
CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM,
VDE |
|
Standard
warranty |
3
years repair or replace (excluding battery) and 2 years for
battery |
|
|
|
|
Sustainable
Offer Status |
|
|
RoHS |
Compliant |
|
REACH |
REACH:
Contains No SVHCs |
|
Battery
Directive |
Compliant |
