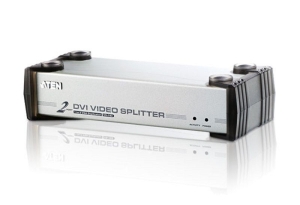

ATEN VS162 VanCryst 2 Port DVI Video Splitter with Audio - 1920x1200@60Hz or 5m Max

IMG 1 of 1
Our Price:
$198.75
RRP:
$279.40
You Save:
$80.65
or quickly purchase this product
Backorder
Part Number:
443540
(?) Brand:
ATEN
Manuf No:
VS162
Shipping Weight:
8.27 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VS162, KVAVS162, KVA-VS-162, 672792133336, 672792111112

Aten VS162 2-Port DVI/Audio Splitter



Features

  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
  • Speaker enabled for audio enjoyment.
  • Cascadable to 3 levels - provides up to 8 video signals.
  • Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
  • Installs in minutes.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • HDCP Compliant.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

ROHSWeee

Overview

VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.

Package Contents

  • 1x 2-Port DVI Video Splitter
  • 1x Power Adapter
  • 1x User Instructions

Specification

Video Input



Interfaces

1 x DVI-I Female (White)

Impedance

100 Ώ

Max. Distance

1.8 m

Video Output



Interfaces

2 x DVI-I Female (White)

Impedance

100 Ώ

Video



Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDCP Compatible

Max. Resolution

Up to 1920 x 1200

Max. Distance

Up to 5 m

Audio



Input

1 x Mini Stereo Jack Female (Green)

Output

2 x Mini Stereo Jack Female (Green)

Connectors



Power

1 x DC Jack

Power Consumption

DC5.3V:2.36W:11BTU

Environmental



Operating Temperature

0-50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties



Housing

Metal

Weight

0.87 kg ( 1.93 lb )

Dimensions (L x W x H)

21.00 x 8.80 x 5.55 cm



(8.27 x 3.46 x 2.19 in.)

Carton Lot

5 pcs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.
