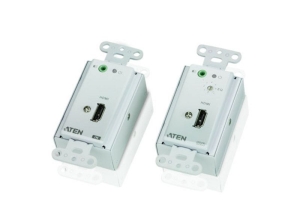

Aten VE806 HDMI/Audio Cat 5 Extender Wall Plate 1080p @
40m
Features
- Uses two Cat 5e cables to connect the local and remote units - one to
transmit video and audio signal, and the other one is used for power signal
transmission, real EDID bypass, and HDCP key authentication*
- Remotely powered from either the Transmitter or Receiver side **
- Extends the distance between HDMI source and HDMI display
- Superior video quality – up to 1080p@60Hz (40m), 1080i@60Hz (60m)
- HDMI (3D, Deep Color); HDCP Compatible
- 8 segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play – no software installation required
Overview
1x User InstructionsThe VE806 HDMI Over Cat 5 Extender Wall Plate extends
HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide
screen formats and ensures excellent video quality over long distance
transmissions. The VE806 combination can further extend the distance or multiply
sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side, and a
second Cat 5e cable is used for power signal transmission, real EDID bypass, and
HDCP key authentication. The VE806’s compact wall plate design does away with
bulky cables and allows a neat and convenient installation. It is an ideal
solution for function rooms, museums and any environment that requires equipment
or cabling to be kept hidden from public view.
Package Contents
- 1x VE806T HDMI Over Cat 5 Extender Wall Plate
- 1x VE806R HDMI Over Cat 5 Extender Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 1x User Instructions
Specifications
|
Function |
VE806R |
VE806T |
|
Video
Input |
|
|
|
Interfaces |
N/A |
1
x HDMI Type A Female (Black) |
|
Impedance |
N/A |
100
Ώ |
|
Max.
Distance |
N/A |
1.8
m |
|
Video
Output |
|
|
|
Interfaces |
1
x HDMI Type A Female (Black) |
N/A |
|
Impedance |
100
Ώ |
N/A |
|
Video |
|
|
|
Max.
Data Rate |
6.75
Gbps (2.25 Gbps Per Lane) |
6.75
Gbps (2.25 Gbps Per Lane) |
|
Max.
Pixel Clock |
225
MHz |
225
MHz |
|
Compliance |
HDMI
(3D, Deep Color) |
HDMI
(3D, Deep Color) |
|
|
HDCP
Compatible |
HDCP
Compatible |
|
Max.
Resolutions / Distance |
Up
to 1080p@40m; 1080i@60m |
Up
to 1080p@40m; 1080i@60m |
|
Audio |
|
|
|
Input |
N/A |
1
x HDMI Type A Female (Black) |
|
Output |
1
x HDMI Type A Female (Black) |
N/A |
|
Connectors |
|
|
|
Power |
1
x Terminal Block (Green) |
1
x Terminal Block (Green) |
|
Power
Consumption |
BTU |
DC9V:2.28W:11BTU |
|
Environmental |
|
|
|
Operating
Temperature |
0
- 50°C |
0
- 50°C |
|
Storage
Temperature |
-20
- 60°C |
-20
- 60°C |
|
Humidity |
0-80%
RH, Non-Condensing |
0-80%
RH, Non-Condensing |
|
Physical
Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.17
kg ( 0.37 lb ) |
0.17
kg ( 0.37 lb ) |
|
Dimensions
(L x W x H) |
10.41
x 4.44 x 4.00 cm |
10.41
x 4.44 x 4.00 cm |
|
|
(4.1
x 1.75 x 1.57 in.) |
(4.1
x 1.75 x 1.57 in.) |
|
Carton
Lot |
5
pcs |
5
pcs |
