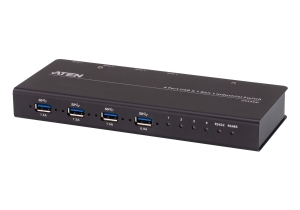

Aten US3344I-AT 4 Port USB 3.1 Gen 1 Industrial Hub Switch
Features
- Enables four computers to share USB peripheral up to four devices
- Supports USB 3.1 Gen1 specification, maximum data transfer rates up to
5Gbps
- Multiplatform support - Windows, Mac and Linux
- LED indicators display port focus
- Metal mechanical cassis with wall mountable designs
- Support aftermarket USB M2 screw locking cable
- Support port selection via remote controller or RS-422/RS-485 link through
5-pin terminal block
- Hot pluggable
- Support DC 9-24V power input by terminal block
- Support Battery Charging V1.2 and over current protection
Overview
The US3344I is a 4-port USB3.1 Gen1 Industrial Switch that enables 4
computers to share the use USB3.1 Gen1 devices, such as keyboard, mouse and
other peripheral devices. The peripheral focus can be given to a computer
manually by using pushbutton on the switch.
It eliminates the cost the implement the complicate redundant systems and
equipments for each computer. The US3344I chassis and rack mountable design is
suitable for industrial environment. For extra convenience, it features an
external remote control port that can simplify cabling layout via traditional
RS-422/RS-485 signals.
The US3344I allows for a neat and tidy installation –The USB cables are
bundled to save the extra cost of purchasing USB cables.
Package Contents
- 1x 4x4 USB 3.1 Gen 1 Industrial Hub Switch
- 2x LIN6-11C1-E11G USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M
- 2x LIN6-11C1-E12G USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M
- 1x Remote Port Selector
- 1x Mounting Kit
- 1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block
adapter)
- 1x User Instructions

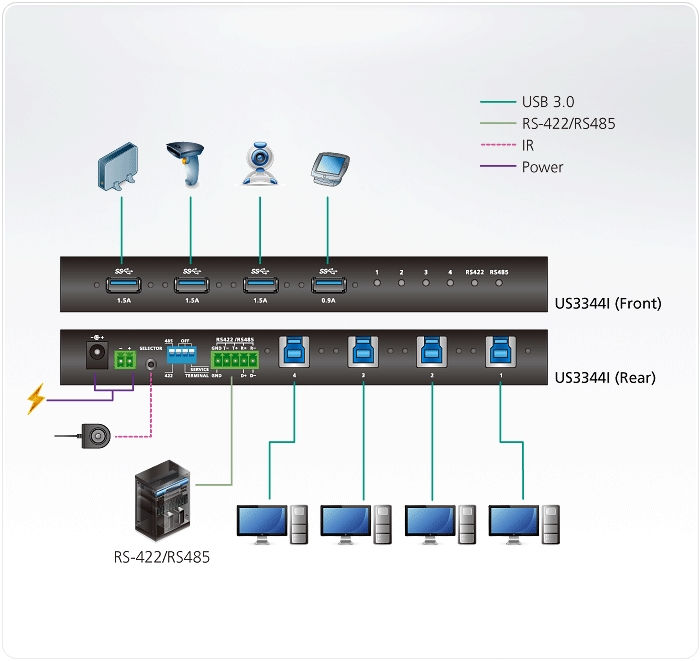

Diagram
Specifications
|
Computer
Connections |
4 |
|
Connectors |
|
|
Computer |
4
x USB Type B Female (Blue) |
|
Device |
4
x USB Type A Female (Blue) |
|
Serial |
1
x 5-pin Terminal Plug (Green) |
|
Power |
1
x 2-pin 9-24V Terminal Plug (Green) |
|
Power
(Optional) |
1
x 12V DC Jack Female (Black) |
|
Port
Selection |
Remote
port selector / Serial command |
|
LEDs |
|
|
Selected |
4
(Green) |
|
Serial |
RS422
(Orange ) |
|
|
RS485
(Green ) |
|
Cable
Length |
|
|
USB
Cable |
2x
USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M |
|
|
2x
USB 3.1 Gen 1 Type-B to Type-A Cables 1.8M |
|
Remote
Port Selector |
1.8
m |
|
Environmental |
|
|
Humidity |
0–80%
RH, Non-condensing |
|
Operating
Temperature |
0–50°C |
|
Storage
Temperature |
-20–60°C |
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.51
kg ( 1.12 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 8.00 x 2.50 cm |
|
|
(7.87
x 3.15 x 0.98 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
