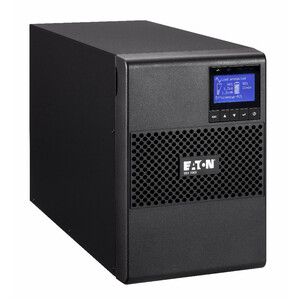

Eaton 9SX1000I-AU 1000VA/900W On Line Tower
UPS
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection.
Specifications
|
General |
|
|
Topology |
On-line
double conversion with PFC (Power Factor Correction)
system |
|
Configuration |
Tower |
|
Part
Number |
9SX1000I-AU |
|
Rating
(VA/Watts) |
1000/900 |
|
Dimensions
(H x W x D, mm) |
252
x 160 x 387 |
|
Warranty |
2
years |
|
Electrical
Input |
|
|
Connection |
(1)
IEC-320-C14 |
|
Input
Voltage Range |
190-276V
without derating (up to 120–276V with derating) |
|
Nominal
Voltage |
200/208/220/230/240V |
|
Frequency |
50/60
Hz autoselection |
|
Frequency
Range |
40-70
Hz |
|
Electrical
Output |
|
|
Output
Receptacles |
(4)
Aust. 10A |
|
Output
Frequency |
50/60
Hz autoselect, frequency converter as standard |
|
Battery |
|
|
Battery
Management |
ABM®
and Temperature compensated charging method (user selectable), automatic
battery test, deep discharge protection, automatic recognition of external
battery units. |
|
Extended
Battery Capability |
EBM |
|
Communications |
|
|
User
Interface |
Multilingual
graphical LCD display |
|
Communication
Ports |
1
USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power
Off + 1 mini-terminal block for Output relay |
|
Communication
Slot |
1
slot for Network-M2, Network-MS, ModBus-MS or Relay-MS
cards |
|
Environmental
&Standards |
|
|
Audible
Noise |
<41dB |
|
Operating
Temperature |
0
to 40°C continuous |
|
Safety
markings |
IEC/EN
62040-1, UL 1778, CSA 22.2 |
|
EMC
Markings |
IEC/EN
62040 -2 , FCC Class B, CISPR22 Class B |
|
Approvals |
CE
/CB report (TUV) / cULus / EAC /
RCM |
