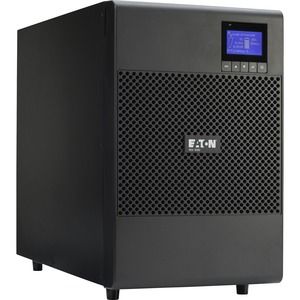

EATON 9SX3000I-AU 3000VA/2700W On Line Tower UPS

General

Topology

On-line double conversion with PFC (Power Factor Correction) system

Configuration

Tower

Part Number

9SX3000I-AU

Rating (VA/Watts)

3000/2700

Dimensions (H x W x D, mm)

346 x 214 x 412

Warranty

2 years

Electrical Input

Connection

(1) IEC-320-C20

Input Voltage Range

200-276V without derating (up to 140-276V with derating)

Nominal Voltage

200/208/220/230/240V

Frequency

50/60 Hz autoselection

Frequency Range

40-70 Hz

Electrical Output

Output Receptacles

(1) IEC-320-C19

(5) Aust. 16A

Output Frequency

50/60 Hz autoselect, frequency converter as standard

Battery

Battery Management

ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.

Extended Battery Capability

EBM

Communications

User Interface

Multilingual graphical LCD display

Communication Ports

1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot

1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards

Environmental & Standards

Audible Noise

<45dB

Operating Temperature

0 to 40°C continuous

Safety markings

IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Markings

IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals

CE /CB report (TUV) / cULus / EAC / RCM
