GENERAL |

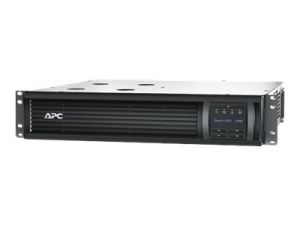

Device Type | UPS - rack-mountable |
Height (Rack Units) | 2U |
Colour | Black |
Bundled with | APC UPS Network Management Card |
BATTERY |
Technology | Lead Acid |
Run Time (Up To) | 7 min at full load 26 min at half load |
Recharge Time | 3 hours |
Switchover Time | 2 ms |
Features | Maintenance free, sealed, leak-proof |
NETWORKING |
Remote Management Interface | Ethernet, RS-232, USB |
EXPANSION / CONNECTIVITY |
Interfaces | 1 x management (RS-232) - RJ-45 1 x management (USB) - 4 pin USB Type B Management (USB) - RJ-45 |
Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
MISCELLANEOUS |
Included Accessories | Rack mounting rails, temperature probe |
Cables Included | Serial cable - external USB cable - external |
Rack Mounting Kit | Included |
Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy metre |
Compliant Standards | VDE, IEC 62040-2, RoHS, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
MANUFACTURER WARRANTY |
Service &Support | Limited warranty - 3 years Limited warranty - batteries - 2 years |
ENVIRONMENTAL PARAMETERS |
Min Operating Temperature | 0 C |
Max Operating Temperature | 40 C |
Humidity Range Operating | 0 - 95% |
Sound Emission | 46 dBA |
DIMENSIONS &WEIGHT |
Width | 43.2 cm |
Depth | 45.7 cm |
Height | 8.9 cm |
Weight | 28.58 kg |
DIMENSIONS &WEIGHT (SHIPPING) |
Shipping Width | 59.4 cm |
Shipping Depth | 60.3 cm |
Shipping Height | 25.1 cm |
Shipping Weight | 31.84 kg |
POWER DEVICE |
UPS Technology | Line interactive |
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Frequency Required | 50 Hz 3Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | Power IEC 60320 C13 |
Output Voltage | AC 230 V 5% |
Power Capacity | 1 kW / 1500 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 459 Joules |
Circuit Protection | Circuit breaker |
