All stock codes associated to this product
KTT49E, KT-T49E

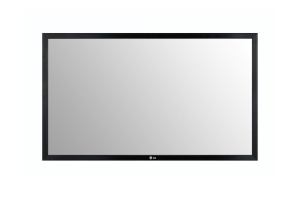

LG KT-T49E 49" Touch Overlay Kit
Key Features
- Touch Type: IR (Infrared Rays) Scattering
- Available Object Size for Touch: F6 mm? (Single), F8 mm? (Multi)
- Accuracy: 2 mm (Over 90% Area)
- Interface: USB 2.0
- Multi Touch Point: Max 10 Points

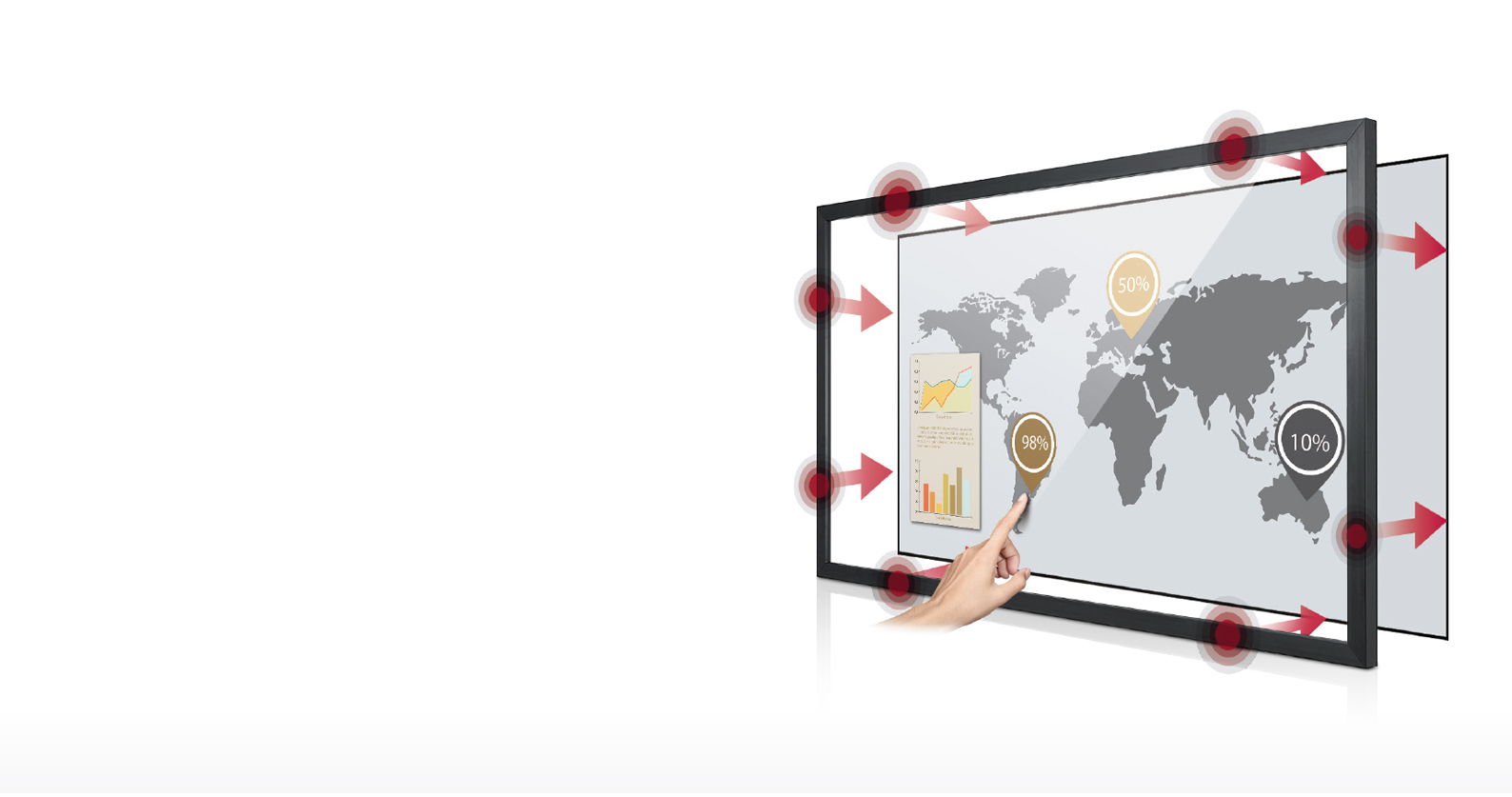

Clean Touch Experience
LG proprietary touch technology can draw clean and accurate diagonal lines
through controlling multi-touch gestures in great precision. Clean multi-touch
experience with IR Spread is based on our in-house IR-Spread technology which
provides better accuracy compared to conventional IR Matrix.
Multi Touch Experience
It provides a more realistic sense of touch since it can recognize up to 10
point-touches at once. Various touch-based customer services can be provided
through the screen so that consumers will have unforgettable shopping
experiences.

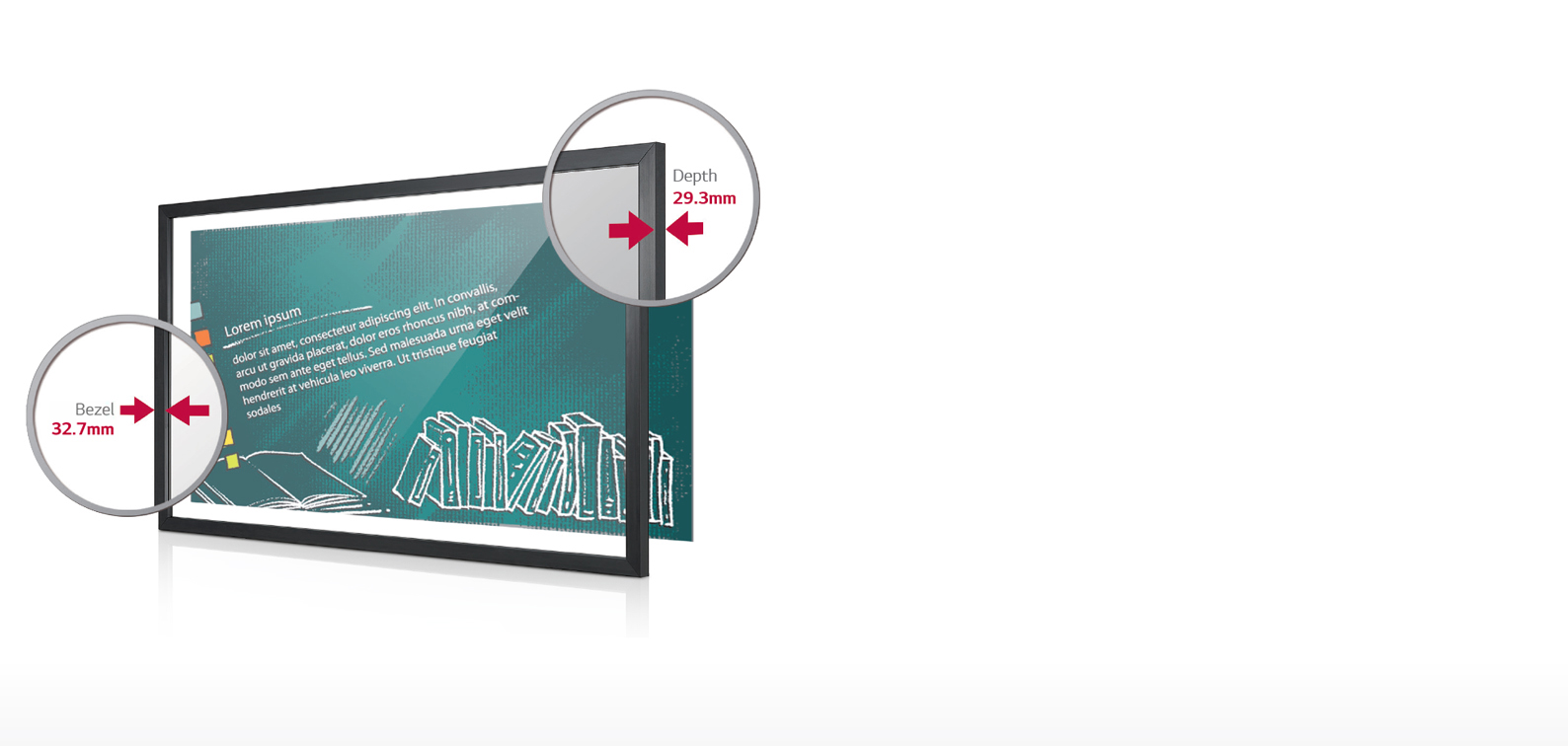

Slim Design for a Sleek Look
With slim bezel and depth, KT-T series is designed to fit compatible displays
and provide better touch accuracy. This way, the display maintains its sleek and
clean look even when multi-functions are added on.
Simple Installation
Just a few screws and brackets are needed to attach a touch overlay kit be to
the display. With low cost and minimal effort, your display can have the added
value of touch performance.
Application
By adding touch values to standard displays, the utilization possibilities
expand to a surprising variety of places. Wherever the KT-T series is installed,
its two-way communication maximizes user engagement as well as user
convenience.
Specifications
|
Touch |
|
|
Touch
type |
IR (Infrared Rays)
Scattering |
|
Available object size
for touch |
6 mm (Single), 8 mm
(Multi) |
|
Scan
Time |
15 ms
|
|
Accuracy |
2 mm (Over 90%
Area) |
|
Interface |
USB
2.0 |
|
Protection Glass
Thickness |
2.8T
(Anti-Glare) |
|
Protection Glass
Transmission |
85
5% |
|
Operating Systme
Support |
Windows 7, Windows 8,
Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux(Kernel
Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 or
Above) |
|
Multi touch
point |
Max 10
Points |
|
|
|
Panel |
|
|
Screen
Size |
49" |
|
Compatible
Products |
49SH7(P)E, 49SH7DD/E,
49SM5(K)D/E, 49SL5B/E, 49SL5PE, 49SM3C,
49SE3(K)D/DD/E |
|
Orientation |
Landscape &
Portrait |
|
|
|
Connectivity |
|
|
Input |
USB |
|
|
|
Physical
Specification |
|
|
Bezel
Width |
32.7
mm |
|
Overlay Dimension (W x
H x D) |
1,142.2 672.4 29.3
mm |
|
Weight
(Head) |
7.8
kg |
|
Carton Dimensions (W x
H x D) |
1,250.0 792.0 162.0
mm |
|
Packed
Weight |
12.7
kg |
|
|
|
Environment
Conditions |
|
|
Operation
Temperature |
0C to
40C |
|
Operation
Humidity |
10 % to 80
% |
|
|
|
Power |
|
|
Power
Supply |
USB |
|
Max |
1.8
W |
|
|
|
Accessory |
|
|
Basic |
Overlay Manual (CD),
Install Accessories |
