Aten CE820 USB HDMI HDBaseTâ„¢ 2.0 KVM Extender (4K@100 m)
Aten 4K HDMI HDBaseT 2.0 KVM Extender with RS232 , Full Speed USB 2.0, Ethernet interface, supports a Long Reach mode up to 1920 x 1080 @ 150m
Overview
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6
/ 6a cable / 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality: (Standard mode up to 4K @ 100 m
(Cat 6 / 6a / 2L-2910) ; Long-Reach mode up to 1080P @ 150 m)
- Supports individual 2-channel stereo audio and USB 2.0 full speed
ports
The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender integrates the latest
HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet,
and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The
HDBaseT 2.0 guarantees the most reliable transmission on the market as well as
enables the long-reach capability that extends full HD 1080P signals up to 150
meters. With an easy cable installation supporting various signals, the CE820 is
ideal for applications where convenient remote access is required such as
transportation control centers, medical facilities, industrial warehouses, and
extended workstations.
Package Contents
- 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
- 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
- 2x Power Adapters
- 2x Mounting Kits
- 1x User Instructions
Features
- Supports HDBaseTâ„¢ 2.0 technology
- Enhanced bit error detection and correction to resist signal
interference during high-quality video transmissions
- Status detection and LED indication for HDBaseTâ„¢ signal transmission on
remote unit
- EDID Buffer for smooth power-up and the highest quality display
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality
- HDBaseTâ„¢ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
- HDBaseTâ„¢ Long-Reach mode up to 1080P @ 150 m
- Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach
modes in a snap
- Supports individual 2-channel stereo audio and USB 2.0 full speed ports
- Supports PC wakeup function via single pushbutton
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage
15KV)

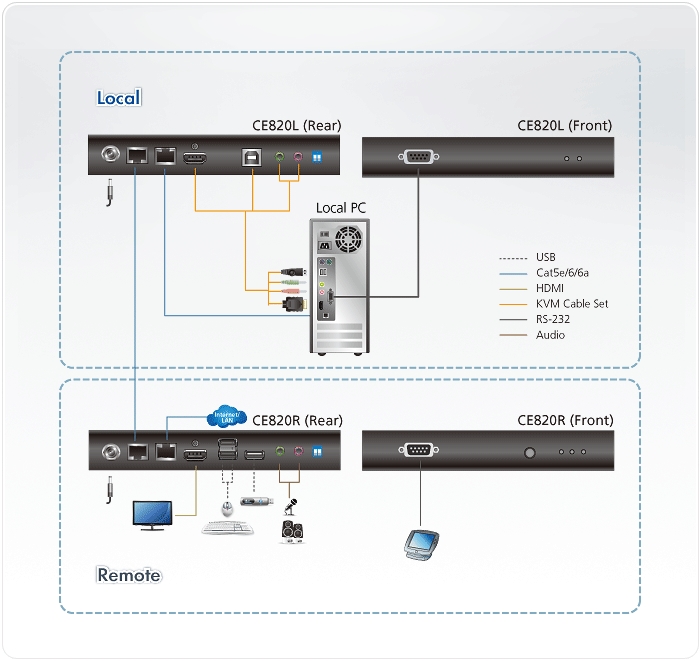

Diagram
Specifications
|
Connectors |
|
Console
Ports |
N/A |
|
KVM
Ports |
1 x HDMI Female
(Black) |
|
1 x USB Type B Female
(White) |
|
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
|
1 x RJ-45 Female
(Black) |
|
RS-232 |
1 x DB-9 Female
(Black) |
|
Power |
1 x DC Jack with
locking |
|
Unit
To Unit |
1 x RJ-45 Female
(Black) |
|
LEDs |
|
Power |
1
(Green) |
|
Link |
1
(Orange) |
|
Video
Output |
N/A |
|
Switches |
|
Long
Reach Mode Switch |
1 x Slide
Switch |
|
Firmware
Upgrade |
1 x Slide
Switch |
|
Pushbuttons |
|
Wakeup
button |
N/A |
|
Video |
Up to 4K@90m (Cat 5e) /
100m (Cat 6/6a/ATEN 2L-2910 Cat6) |
|
1080P@100m (Cat
5e/6/6a) |
|
*4K
supported: |
|
4096 x 2160 / 3840 x
2160 @ 60Hz (4:2:0); |
|
4096 x 2160 / 3840 x
2160 @ 30Hz (4:4:4) |
|
Power
Consumption |
DC5V:2.87W:13BTU |
|
Environmental |
|
Operating
Temperature |
040C |
|
Storage
Temperature |
-2060C |
|
Humidity |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.63 kg ( 1.39 lb
) |
|
Dimensions
(L x W x H) |
18.20 x 12.19 x 2.87
cm |
|
(7.17 x 4.8 x 1.13
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
