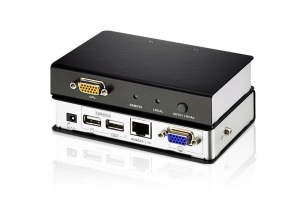

Aten KA7171 USB-PS/2 KVM Adapter Module with Local
Console
Overview
- Local console operation - control your system from the extended USB
keyboard, USB mouse, and monitor via local console
- Built-in ASIC for greater reliability and compatibility
- Supports computers with PS/2 or USB keyboards and mice
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
For smooth operation and added convenience, ATENs KA7171 USB-PS/2 KVM Adapter
Module is designed to provide a full console connection locally in a KVM over IP
Switch or Matrix KVM* installation. The KA7171 allows a PS/2 or USB server to be
connected to the switch via Cat 5e/6 cable and provides an extra console via USB
keyboard, USB mouse, and monitor to use for extended local operations. In
addition, the Privileged Console Control function prevents remote users from
operating the device when a local administrator requires full control of the
server - reducing conflicts and unwanted operations.
Package Contents
- 1 x KA7171 USB-PS/2 KVM Adapter Cable with Local Console
- 1 x Power Adapter
- 1 x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
- 1 x Foot Pad Set (4pcs)
- 1 x User Instructions
Features
- Cat 5e/6 cable connects the device and KVM switch
- Supports computers with PS/2 or USB keyboards and mice
- Local console operation - control your system from the extended USB
keyboard, USB mouse, and monitor via local console
- Pushbutton operating mode selection for privileged console control
- Built-in ASIC for greater reliability and compatibility
- USB overcurrent detection and prevention
- Built-in ESD protection and surge protection
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local
monitor supports DDC; DDC2; DDC2B
- Easy to install – no software required - connecting cables to the devices
is all it takes
* This maximum resolution may vary depending on the transmission
distance. For more details, please refer to the product pages of the connected
KVM switches.
Diagram
Specifications
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White) |
|
1 x HDB-15 Female
(Blue) |
|
KVM
Ports |
1 x SPHD-18 Female
(Yellow) |
|
Power |
1 x DC Jack
(Black) |
|
Pushbuttons |
|
Operating
Mode Selection |
1 x
Pushbutton |
|
LEDs |
|
Local |
1
(Green) |
|
Remote |
1
(Green) |
|
Emulation |
|
Keyboard
/ Mouse |
PS/2,
USB |
|
Video |
Up to 1920 x 1200 @
60Hz; DDC2B |
|
Power
Consumption |
DC5.3V:1.88W:13BTU |
|
Environmental |
|
Operating
Temperature |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.33 kg ( 0.73 lb
) |
|
Dimensions
(L x W x H) |
12.70 x 8.65 x 2.50
cm |
|
(5 x 3.41 x 0.98
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
