All stock codes associated to this product
KA7178AX, KA7178-AX, KVAKA7178, KVA-KA7178

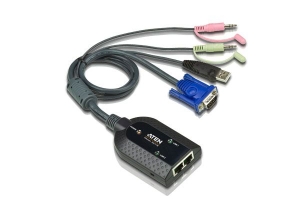

Aten KA7178 USB VGA/Audio Virtual Media KVM Adapter with Dual
Output
Overview
- Auto Signal Compensation (ASC), no DIP switch setting needed for the
different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when
it is disconnected from the switch
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Dual Cat 5e/6 connections and Virtual Media Support
The KA7178 KVM Adapter Cable connects the KVM switch to the video, USB and
audio ports of the target computer. In addition to Virtual Media support, it
provides two Cat 5e/6 connectors, allowing a computer to connect to two ALTUSEN
Matrix KVM switches. This allows consoles on different switches access to the
same computer.
Package Contents
- 1x KA7178 KVM Adapter Cable
Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for the
different distances
- Dual Cat 5e/6 connections
- Keyboard and mouse emulation – keeps your server functioning smoothly when
it is disconnected from the switch's KVM port or relocated to different KVM
port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
- Built in ASIC for greater reliability and compatibility
- CPU module designed with automatic conversion to allow for flexible
interface combinations (PS/2, USB) to control all computer OS types (Windows,
Mac, Sun)
- Compact size
- Virtual Media Support
- Audio enabled
* This maximum resolution may vary depending on the transmission
distance. For more details, please refer to the product pages of the connected
KVM switches.
Diagram
Specifications
|
Connectors |
|
Link |
2 x RJ-45
Female |
|
Computer |
1 x USB Type A
Male |
|
1 x HDB-15
Male |
|
2 x Mini Stereo
Plug |
|
LEDs |
|
Online |
2
(Green) |
|
Power |
1
(Orange) |
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.17 kg ( 0.37 lb
) |
|
Dimensions
(L x W x H) |
9.10 x 5.60 x 2.12
cm |
|
(3.58 x 2.2 x 0.83
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
