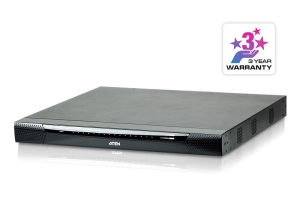

Aten KN2132VA 1-Local/2-Remote Access 32-Port Cat 5 KVM over IP
Switch with Virtual Media (1920 x 1200)
Overview
- Advanced FPGA graphics processor – with a Full HD resolution of 1920 x
1200
- ATEN Exclusive Panel Array Modeâ„¢ simultaneously monitoring for both local
console operators and remote access users
- High-Grade Security – supports FIPS 140-2 level 1 security standards that
use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate
#1747, #2398, #2473)
ATENs
4th generation of KVM over IP switches exceed expectations. The KN2132VA
features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2
with level 1 security standards and virtual media transmissions at twice the
speed. The KN series provides local console and remote over IP access for users
to monitor and access their entire data center over a network. In addition, it
offers out-of-band access with external modem support for BIOSlevel
troubleshooting when the network is
down.
New
KN Series
Exclusive:
- High gradesecurity supports FIPS
140-2 level 1 security
standards
- Extreme
virtual media speed 2 x faster virtual media transmission
speed
- Advanced
FPGA graphics processor withan FullHDresolutionsof 1920 x
1200
With
dualon-boardNICs and dual power supplies, the KN series are
built for reliability, to ensure 24/7 availability of remote access to all
servers.
The
KN series offers out-of-band (OOB) management that enables ITadministratorsto manage network devices (e.g.
server, storage, router/switch) in server rooms via management networks that are
separate from the main/production networks. So if theres difficulty in accessing
the network devices through the production network, the administrators can still
access them via the KVM switch. The KVM switch offers several out-of-band access
methods, such as a direct console connection from a local computer, a USB
console connection from a laptop, a PSTN connection viamodem, or a dedicated management
network connection via the Ethernet (LAN)
port.
KN
series devices can be integrated into the CC2000 Management Software. The CC2000
puts administrators in complete control of remote data centers and branch
offices no matter where they are in the world allowing IT administrators to
remotely monitor and control all devices on a network, including blade servers
and virtual
machines.
To
help you manage and control an entire data center, ATEN KVM over IP switches
support blade servers and chassis. With powerful features such as Power
Association KVM ports can be associated with ATEN PDU power outlets for power
management of servers from the KVM over IP switches user
interface.
Additional
exclusive features of ATEN KVM over IP switchesinclude:a Message Board, Panel Array Mode,
Mouse DynaSync and the Adapter
ID.
A
Windows Client and a Java Client are available for remote access. They allow IP
connection andloginfrom anywhere over the
internet. In addition, ATEN also provides an iOS APP - PadClient, whose
intuitive interface makes it easy to connect to the KVM over IP switch and
control computersdirectfrom your iPad. Please visit
thePadClient webpagefor more
information.
ATEN
KVM over IP switches save you time and money by allowing administrators to
manage their data centers from practically anywhere minimizing travel and MTTR
(Mean Time to Repair) costs, ensuring the highest availability for data center
services
possible.
Package
Contents
- 1x
KN2132VA KVM over IP Switch
- 2x
SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- 2x
Power Cords
- 1x
Mounting Kit
- 2x
Lok-U-Plugs
- 1x
Lok-U-Plug Installation Tool
- 1x
Lok-U-Plug Installation Tool
- 1x
User
Instructions
Features
New KN Series Exclusive
- High-Grade Security supports FIPS 140-2 level 1 security standards that
use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate
#1747, #2398, #2473)
- Extreme virtual media speed 2 x faster virtual media transmission
speed
- Advanced FPGA graphics processor with an Full HD resolution of 1920 x
1200
- Simultaneously share one local console and two independent connections to
the attached servers
Hardware
- High port density RJ-45 connectors and Cat 5e/6 cable for up to 32 ports
in a 1U housing
- Laptop USB Console (LUC) A dedicated USB port directly connects to a
laptop for easy Console operation
- Two separate buses for remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232)
connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and
VT100 based serial devices
- Audio enabled
- Dual Power Supply
- High video resolution up to 1920 x 1200 @ 60Hz (50m) with 24-bit color
depth at the switchs local console and on remote session displays
- Monitor and control up to 32 computers on a single level, or control up to
512 computers in a cascade*
* Cascade-compatible KVM Switches include the following: CS9134, CS9138,
CS88A, KH1508, KH1516, KH1508A, and KH1516A
Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- Green IT-Fan speed varies according to temperature
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog
support
- Customizable events notification
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information allowing administrators to
relocate the servers to different ports, without having to re-configure the
adapters and switches
- Port Share Mode allows multiple users to gain access to a server
simultaneously
- Integration with ATEN CC2000 Management Software
- Integration with ATEN CCVSR Video Session Recording Software*
- Power Association enables the switchs KVM ports to be associated with ATEN
PDUs power outlets for remote power management
- IPv6 capable
*supports recording computer operations accessed through the local
console and via remote sessions.
Ease-to-Use Interface
- ATEN Exclusive Panel Array Mode simultaneously monitoring for both local
console operators and remote access users
- Local Console, browser-based, and AP GUIs offer a unified Multilanguage
interface to minimize the user training time and increase
productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera,
Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform
administrative tasks without pre-installed Java software package
required
- Users can launch multiple virtual remote desktop sessions to control
multiple servers during the same login
- Full-screen or sizable and scalable Virtual Remote Desktop
- Keyboard/Mouse Broadcast keyboard and mouse inputs can be duplicated on
all the attached servers
- Video syncing with the local console local console monitors EDID
information stored on the KVM Adapter Cables for display resolution
optimization
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active
Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure
users log in from browser
- Flexible encryption design allows users to choose any combination of DES,
3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media
data encryption
- Support for IP/MAC Filter
- Configurable user and group permissions for server access and
control
- Automated CSR creation utility and third party CA certificate
authentication
Virtual Media
- Virtual media enables file applications, OS patching, software
installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS
level
- Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO
images
Virtual Remote Desktop
- Video quality can be adjusted to optimize data transfer speed; monochrome
color depth setting, threshold and noise settings for compression of the data
bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync-automatically synchronizes the local and remote mouse
movements
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access for trouble
shooting
Diagram
Specifications
|
Console
Connections |
|
Local |
1 |
|
Remote |
2 |
|
Computer
Connections |
|
Direct |
32 |
|
Maximum |
512 (via
Cascade) |
|
Port
Selection |
Pushbuttons, Hotkeys,
GUI |
|
Connectors |
|
Console
Ports |
2 x USB Type-A Female
(White) |
|
1 x DVI-D Female
(White) |
|
1 x VGA HDB-15
(Blue) |
|
1 x RJ-45 Female
(Black) |
|
USB
Port |
3 x USB Type-A
Female |
|
Audio |
2 x Audio Jack
Female |
|
Laptop
USB Console (LUC) Port |
1 x USB Mini-B
Female |
|
KVM
Ports |
32 x RJ-45
Female |
|
Serial |
1 x RJ-45
Female |
|
PON |
1 x RJ-45
Female |
|
LAN
Ports |
2 x RJ-45
Female |
|
Power |
2 x IEC
60320/C14 |
|
Switches |
|
Port
Selection |
2 x
Pushbuttons |
|
Reset |
1 x Semi-recessed
Pushbutton |
|
Power |
2 x Rocker
Switches |
|
LEDs |
|
Online
/ Selected |
32
(Green/Orange) |
|
Link
10 / 100 / 1000 Mbps |
2
(Red/Orange/Green) |
|
Power |
2
(Blue) |
|
Emulation |
|
Keyboard
/ Mouse |
PS/2;
USB |
|
Video |
|
Local |
1920 x 1200 @
60Hz |
|
Remote |
1920 x 1200 @
60Hz |
|
Scan
Interval |
1 255
Sec |
|
Maximum Input Power
Rating |
100240V~ ; 50-60Hz;
1A |
|
Power
Consumption |
AC110V:39.5W:221BTU |
|
AC220V:39.7W:222BTU |
|
Environmental |
|
Operating
Temperature |
0 -
40C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
5.69 kg ( 12.53 lb
) |
|
Dimensions
(L x W x H) |
43.36 x 41.21 x 4.40
cm |
|
(17.07 x 16.22 x 1.73
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
