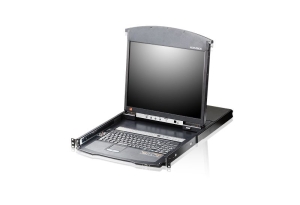

Aten KL1516AIN 16-Port 19in. Dual Rail CAT5 LCD KVM over IP Switch



Overview

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17 or 19 LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 8 computers
  • Daisy chain up to 15 additional KVM switches to control up to 128 computers*

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to hide away when not in use, while the thin profile LCD monitor rotates back flush against the rack allowing convenient monitoring of computer activity.

The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet whether that computer is located down the hall, down the street, or halfway around the world.

Package Contents

  • 1x KL1516Ai Dual Rail LCD KVM Switch
  • 1x Power Cord
  • 1x Standard Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 1x User Instructions

Features

Hardware

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17 or 19 LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 8 computers
  • Daisy chain up to 15 additional KVM switches to control up to 128 computers*
  • One bus for remote KVM over IP access
  • Space-saving RJ-45 connectors and Cat 5e/6 cabling
  • KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra console port manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Multiplatform support: PC, Mac, Sun and Serial
  • Supports external USB mouse
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock enables the console drawer to remain securely locked away in position when not in use
  • LCD power button helps save energy and prolong displays life

* Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516

Management

  • Up to 64 user accounts up to 32 concurrent remote logins
  • End session feature administrators can terminate any running session
  • Adapter ID stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Remote power control for attached Power Over the NET devices
  • Integration with ALTUSEN CC2000 Management software
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Firmware upgradeable
  • IPv6 capable

Easy-to-Use Interface

  • Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
  • Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode
  • Keyboard broadcast* keyboard input can be duplicated on all the attached servers

* Local Console only

Advanced Security

  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
  • IP/MAC Filter support for enhanced security protection
  • Configurable user and group permissions for server access and control

Virtual Remote Desktop

  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Message board feature allows logged in users to communicate with each other
  • Mouse DynaSync automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multi language support
  • BIOS-level access
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese

Diagram

Specifications

Console Connections

Local

1 (Share Remote Bus)

Remote

1

Computer Connections

Direct

16

Maximum

256 (via Daisy-chain)

Port Selection

OSD, Hotkey, Pushbuttons

Connectors

Console Ports

2 x USB Type-A Female (White)

1 x 6-pin Mini-DIN Female (Purple)

1 x 6-pin Mini-DIN Female (Green)

1 x HDB-15 Female (Blue)

External Mouse Port

1 x USB Type-A Female

KVM Ports

16 x RJ-45 Female

Daisy Chain Ports

1 x DB-25 Male

PON

1 x RJ-45 Female

Firmware Upgrade

1 x RJ-11 Female

LAN Ports

1 x RJ-45 Female

Power

1 x IEC 60320/C14

Switches

Port Selection

16 x Pushbutton

Station Selection

2 x Pushbutton

Reset

1 x Semi-recessed Pushbutton

Firmware Upgrade

1 x Slide

Power

1 x Rocker

LCD Power

1 x Pushbutton

LCD Adjustment

4 x Pushbutton

LEDs

Online

16 (Green)

Selected

16 (Orange)

Station Selection

2 x 7 Segments (Orange)

Link

1 (Green)

10/100/1000 Mbps

non-FHD:10/100 Mbps (Orange / Green)

FHD:100/1000 Mbps (Orange / Green)

Power

1 (Blue)

LCD Power

1 (Orange)

Lock

1 x Num Lock (Green)

1 x Caps Lock (Green)

1 x Scroll Lock (Green)

Video

Local

1600 x 1200 @ 60Hz (non-FHD version)

1920 x 1200 @ 60Hz (FHD version)

Remote

FHD: 1920 x 1200 @ 60Hz

Non-FHD: 1600 x 1200 @ 60 Hz

Panel Spec

LCD Module

19" TFT-LCD

Resolution

1280 x 1024 @ 75Hz

Pixel Pitch

0.294 mm x 0.294 mm

Response time

5 ms

Viewing Angle

170 (H), 160 (V)

Support Color

16.7M colors

Contrast Ratio

1000:01:00

Luminance

250 cd/m

Emulation

Keyboard / Mouse

PS/2; USB

Scan Interval

1255 sec.

Maximum Input Power Rating

100240V AC, 50-60Hz, 1A

Power Consumption

AC110V:24.4W:125BTU

AC220V:25.4W:130BTU

Environmental

Operating Temperature

0 - 40C

Storage Temperature

-20 - 60C

Humidity

080% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

15.40 kg ( 33.92 lb )

Dimensions (L x W x H)

48.00 x 70.12 x 4.40 cm

(18.9 x 27.61 x 1.73 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
