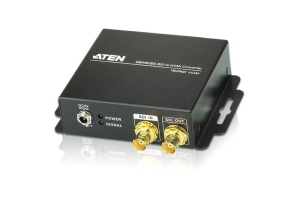

ATEN VC480 3G-SDI to HDMI/Audio Converter

Our Price:

$402.50

RRP:

~~$439.00~~

You Save:

$36.50

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

448711

(?) Brand:

ATEN

Manuf No:

VC480-AT-U
VC480ATU

Shipping Weight:

0.29 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

VC480ATU, VC480-AT-U

Aten VC480 3G-SDI to HDMI/Audio Converter

Overview

Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats: SD-SDI (SMPTE 259M, up to 270Mbps) HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps) 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Package Contents

1x VC480 3G/HD/SD-SDI to HDMI Converter
1x Power Adapter
1x User Instructions

Features

Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 295 ft. (90M) (3G-SDI), 492 ft. (150M) (HDSDI) or 985 ft. (300M) (SD-SDI) of RG6
Supported SDI formats:
- SD-SDI (SMPTE 259M, up to 270Mbps)
- HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
- 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
Video Support:
- [email protected], 625i@50
- [email protected]/24/25/29.94/30/50/59.94/60
- 1080i@50/59.94/60
- [email protected]/24/25/29.97/30/50/59.94/60
- 2048 x 1080
Buffered loop-through output provides extended monitoring
Supports 8 audio channels @48kHz rate
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications

Diagram

Specifications

Video Input
Interfaces	1 x BNC (Gold)
Impedance	75
Video Output
Interfaces	1 x HDMI Type A Female (Black);
Interfaces	1 x BNC (Gold)
Impedance	100
Video
Max. Data Rate	2.97 Gbps
Max. Pixel Clock	148.5 MHz
Supported Resolutions	[email protected], PAL@50 Hz;
	720p@50/59.94/60 Hz;
	1080i@50/59.94/60 Hz;
	[email protected]/24/25/29.97/30/50/59.94/60 Hz
Max. Distance	90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
Audio
Output	Analog: 2 x RCA (Red/White)
Output	Digital: 1 x RCA (Yellow)
SDI Formats	SD-SDI (SMPTE 259M, up to 270 Mbps)
	HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
	3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:3.635WBTU
Environmental
Operating Temperature	0 - 40 C
Storage Temperature	-20 - 60 C
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.29 kg ( 0.64 lb )
Dimensions (L x W x H)	12.30 x 10.87 x 3.05 cm
Dimensions (L x W x H)	(4.84 x 4.28 x 1.2 in.)
Carton Lot	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
