All stock codes associated to this product
VM7404AT, VM7404-AT, KVAVM7404, KVA-VM7404

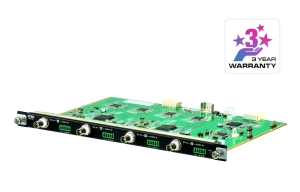

Aten VM7404 4-Port 3G-SDI Input Board
Overview
- Connects up to 4 SDI inputs
- Compatible with the VM1600 - mix and match modular I/O boards for optimal
fl exibility
- Supports SD-SDI, HD-SDI and 3G-SDI formats
- Hot-swappable design for easy integration of I/O boards
The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI
video and audio sources to multiple displays when used in combination with an
ATEN Modular Matrix Switch. This input board provides the capability to connect
to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality
video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog
stereo audio signals that can be routed independently. Furthermore, the board is
based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to
remain on while the board is changed. Ideal for surveillance systems and
numerous other broadcast-grade A/V applications, the VM7404 allows you to
effectively centralize routing for all your 3G / HD / SD-SDI devices.
Package Contents
- 1x VM7404 4-Port 3G-SDI Input Board
- 4x Terminal Block Connectors
- 1x User Instructions
Features
- Connects up to 4 SDI inputs
- Supports SD-SDI, HD-SDI and 3G-SDI formats
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 - mix and match modular I/O boards for optimal
fl exibility
Note: When the VM7404 is used in conjunction with output boards featuring
scalers, the Seamless Switch, scaler and video wall functions can be
used.
Diagram
Specifications
|
Video |
|
Supported
Resolutions |
PAL /50 PAL and
NTSC/59.94 |
|
720p 25, 29.97,
30,50,59.94, 60 |
|
1080i50, 59.94,
60 |
|
1080PsF 25,
29.97,30 |
|
1080p 23.98, 24, 25,
29.97, 30,50,59.94, 60 |
|
Max.
Data Rate |
2.97
Gpbs |
|
Max.
Distance |
100m (3G-SDI); 150m
(HD-SDI); 300m (SD-SDI) |
|
SDI
Formats |
3G-SDI,
SMPTE-259,292,424, 425 Level A & B-DL |
|
Audio
Inputs |
|
Interfaces |
4 x Captive Screw
Connectors, 5 pole |
|
* Audio signal type:
stereo, balanced/unbalanced. |
|
Power
Consumption |
16W:75BTU |
|
Environmental |
|
Operating
Temperature |
040C |
|
Storage
Temperature |
-2060C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
Physical
Properties |
|
Weight |
0.60 kg ( 1.32 lb
) |
|
Housing |
Metal |
|
Dimensions
(L x W x H) |
35.20 x 23.80 x 2.33
cm |
|
(13.86 x 9.37 x 0.92
in.) |
|
Note |
Audio signal type
support stereo, balanced/unbalanced. |
|
Balanced audio maximum
input/output level: 0.5 Vrms (-6.02dBV@600 ohm ) |
|
Unbalanced audio
maximum input/output level: 1Vrms (0dBV@600ohm.) |
|
Video
Input |
|
Interfaces |
4 x BNC
Female |
|
Impedance |
75
|
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
