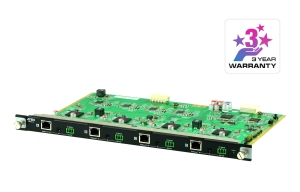

ATEN VM7514 4-Port HDBaseT Input Board - For VM1600/VM3200

Our Price:

$3,579.35

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

448728

(?) Brand:

ATEN

Manuf No:

VM7514-AT
VM7514AT

Shipping Weight:

0.64 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

VM7514AT, VM7514-AT, KVAVM7514, KVA-VM7514

Aten VM7514 4-Port HDBaseT Input Board

Overview

HDBaseT Connectivity extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
Bi-directional RS-232 channel allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel IR transmission is processed one direction at a time

The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the abilityof routingup to 32 input and 32 output HDBaseT connections.

Package Contents

1x VM7514 4-Port HDBaseT Input Board
4x Terminal Block Connectors
1x IR Transmitter
1x IR Receiver
1x User Instructions

Features

4-port HDBaseT Input Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Bi-directional RS-232 channel allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
HDBaseT Connectivity extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
HDBaseT Anti-jamming resists signal interference during video transmission using HDBaseT technology
Bi-directional IR channel IR transmission is processed one direction at a time
Hot-swappable design for easy integration of I/O boards

Diagram

Specifications

Video Input
Interfaces	4 x RJ-45 Female (Silver)
Impedance	100
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDBaseT, HDCP 1.4 compatible
Compliance	Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
Max. Resolution	4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	100 m (Cat 6a)
Control
RS-232	4 x Captive Screw Connectors, 3 pole
IR	4 x Mini Stereo Jack Female (Black)
Power Consumption	24.5W:115BTU
Environmental
Operating Temperature	040C
Storage Temperature	-2060C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.64 kg ( 1.41 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm
Dimensions (L x W x H)	(13.86 x 9.37 x 0.92 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 48 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
