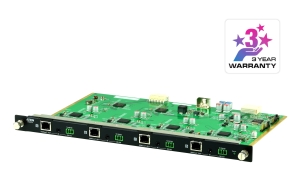

Aten VM8514 4-Port HDBaseT Output Board
Overview
- HDBaseT Connectivity extends 4 HDBaseT connections up to 100 meters via
single Cat 5e/6 cable
- Compatible with the VM1600 and can be mixed with modular I/O boards of any
type for optimum flexibility
- Bi-directional RS-232 channel allows you to connect to serial terminals or
serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel IR transmission is processed one direction at a
time
The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT
transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular
Matrix Switches to provide the ability of routing up to 32 input and 32 output
HDBaseT connections.
When the VM8514 HDBaseT Output Board is used in conjunction with the VE805R
HDBaseT receiver it features Seamless Switch technology and video wall
functionality. ATENs Seamless Switch technology provides video switching in
real-time with abuilt inscaler that handles different
video resolutions across different displays and video wall features that allow
you to configure up 32 profiles for custom layouts via the point-n-click web
GUI.
Package Contents
- 1x VM8514 4-Port HDBaseT Output Board
- 4x Terminal Block Connectors
- 1x IR Transmitter
- 1x IR Receiver
- 1x User Instructions
Features
- 4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and
can be mixed with modular I/O boards of any type for optimum
flexibility
- Bi-directional RS-232 channel allows you to connect to serial terminals or
serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity extends 4 HDBaseT connections up to 100 meters via
single Cat 5e/6 cable
- HDBaseT Anti-jamming resists signal interference during video transmission
using HDBaseT technology
- Connected to VE805R/VE816R:
- Seamless Switch features close-to-zero-second switching, continuous
video streams, real-time switching and stable signal
transmissions
- Video Wall features configurable video wall profiles for custom layouts
via point-n-click web GUI
- Bi-directional IR channel IR transmission is processed one direction at a
time
- Hot-swappable design for easy integration of I/O boards
Diagram
Specifications
|
Video
Output |
|
Interfaces |
4 x RJ-45 Female
(Silver) |
|
Impedance |
100
|
|
Video |
|
Max.
Data Rate |
10.2 Gbps (3.4 Gbps per
lane) |
|
Max.
Pixel Clock |
340
MHz |
|
Compliance |
HDBaseT, HDCP 1.4
compatible |
|
Consumer Electronics
Control (CEC) |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:2:0); |
|
4096 x 2160 / 3840 x
2160 @ 30Hz (4:4:4) |
|
Max.
Distance |
100 m (Cat
6a) |
|
Control |
|
RS-232 |
4 x Captive Screw
Connectors, 3 pole |
|
IR |
4 x Mini Stereo Jack
Female (Black) |
|
Power
Consumption |
12.2W:57BTU |
|
Environmental |
|
Operating
Temperature |
0 -
40C |
|
Storage
Temperature |
-2060C |
|
Humidity |
080% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.97 kg ( 2.14 lb
) |
|
Dimensions
(L x W x H) |
35.20 x 23.80 x 2.33
cm |
|
(13.86 x 9.37 x 0.92
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
