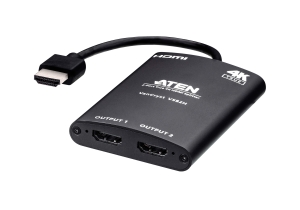

Aten VS82H 2-Port True 4K HDMI Splitter
Overview
- Distributes one True 4K source to two HDMI displays at the same
time
- Automatic downscaling function automatically adjusts the resolution to
1080p for 1080p displays to fit their optimal output
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- Quality and durable aluminum metal enclosure
The ATEN VS82H splitter offers you superior video resolution of True 4K and
lossless quality when sending one source of digital high-definition video to two
displays. It supports HDMI-enabled equipments from DVD players, satellite
set-top boxes to all HDMI displays.
Aside from being HDCP 2.2 compliant, the VS82H comes with automatic EDID
detection that always presents users with the best resolution across different
screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio
channel, the VS82H ensures you distortionless and outstanding audio
quality.
Whats more, the VS82H is a bus-powered splitter that can be charged directly
from a device connected through Micro-USB port. Integrating the above
functionalities provides you an effective solution for personal, corporate,
educational and commercial applications.
Package Contents
- 1x VS82H 2-Port True 4K HDMI Splitter
- 1x Micro-USB Cable
- 1x User Instructions
Features
- Distributes one True 4K source to two HDMI displays at the same
time
- Automatic downscaling function automatically adjusts the resolution to
1080p for 1080p displays to fit their optimal output
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR
supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection enjoy high-quality display and use of the best
resolution across different screens
- Quality and durable aluminum metal enclosure
Diagram
Specifications
|
EDID
Settings |
PORT-1 &
Default |
|
LEDs |
|
Status |
HDMI Output x 2
(Blue) |
|
Power Input x 1
(Blue) |
|
Video
Input |
|
Interfaces |
1 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
30cm / 4K@60Hz
(4:4:4) |
|
Video
Output |
|
Interfaces |
2 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
3m / 4K@60Hz
(4:4:4) |
|
Video |
|
Max.
Data Rate |
18 Gbps (6 Gbps Per
Lane) |
|
Max.
Pixel Clock |
600
MHz |
|
Compliance |
HDMI 2.0 (3D, Deep
Color, 4K); |
|
HDCP 2.2
Compatible |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:4:4) |
|
Power
Consumption |
3WATT(MAX)BTU |
|
Connectors |
|
USB
Port |
Micro-USB to USB cable
(50cm) X 1 |
|
Firmware upgrade &
power source |
|
Environmental |
|
Operating
Temperature |
0-40
C |
|
Storage
Temperature |
-20 - 60
C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal
(aluminum) |
|
Weight |
0.09 kg ( 0.2 lb
) |
|
Dimensions
(L x W x H) |
8.80 x 6.00 x 15.00
cm |
|
(3.46 x 2.36 x 5.91
in.) |
|
Carton
Lot |
40
pcs |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
