All stock codes associated to this product
YVC1000

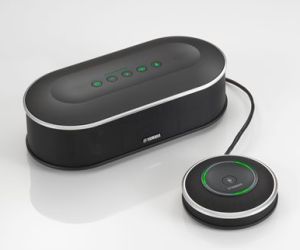

Yamaha YVC1000 USB & Bluetooth Conference Room
Overview
Ideal for medium and large spaces, this intuitive communications system
features separate microphone and speaker units for flexibility during audio,
web, and video conferencing. Designed to support 2 external speakers and 5
daisy-chained microphones, its the perfect scalable solution for accommodating
larger meeting rooms and additional participants. Adaptive echo cancellation and
human voice activity detection (HVAD) minimize background noise, facilitating
natural, stress-free conversation during every call.
Features
Find a speakerphone system that's optimized for your meeting room and
conferencing preferences, all backed by Yamaha's industry-leading audio
technology.
- Multiple connection options via Bluetooth and USB
- Ability to daisy chain up to 5 microphones and support 2 external
speakers
- High-quality audio technology with Human Voice Activity Detection (HVAD)
to minimize background noise during calls
- One-button autotuning analyzes the room environment and automatically
adjusts acoustic settings to the optimal level
Specifications
|
Interface |
Control Unit: USB 2.0
High Speed, Bluetooth, NFC (Near Field Communication)
Audio Input
terminal (stereo RCA pin), Audio Output terminal (stereo RCA
pin),
External speaker terminal (RCA pin) x 2, Power terminal,
Microphone terminal
Microphone: Input and output
terminals |
|
Power consumption
(max |
20 W (one connected
microphone), 35 W (five connected microphones) |
|
Radio interference
standard |
d FCC (Part 15B) Class
A, ICES-003 |
|
Operating
environment |
Temperature: 0 to 40C
(32 to 104F) |
|
Humidity: 20 to 85% (no
condensation) |
|
Dimensions |
Control Unit (W x H x
D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in) |
|
Microphone (W x H x D):
136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in) |
|
Weight |
Control Unit: 1.8 kg
(4.0 lbs), Microphone: 0.4 kg (0.9 lbs) |
|
Power
source |
120 V (60
Hz) |
|
Supported
OS |
OS: 32-bit or 64-bit
Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows
8,
32-bit or 64-bit Windows 7, Mac OS X 10.11, Mac OS X 10.10, Mac OS X
10.9, Mac OS X 10.8 |
|
USB: USB 2.0 or
later |
|
Bluetooth |
Bluetooth specification
version: 2.1 + EDR |
|
Supported profile: HFP
(1.6), A2DP |
|
Supported Codec: SBC,
mSBC |
|
Wireless output: Class
2 |
|
Maximum communication
distance: 10 m (32.8 ft) |
|
NFC |
Compatible devices:
NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and
4.4 |
|
Voice
guidance |
English, Japanese,
Chinese, Korean, French, Spanish, German |
|
Accessories |
Power cable (3 m (9.8
ft)), USB cable (5 m (16.4 ft)), microphone cable (5 m (16.4 ft)), Quick
Start Guide |
|
Others |
Firmware update
(transfer from PC through USB) |
|
Microphone
unit |
Unidirectional x
3 |
|
Speaker
unit |
Full-range x
1 |
|
Maximum
volume |
95 dB (0.5 m (1.6
ft)) |
|
Frequency
bandwidth |
For sound pickup: 100
to 20,000 Hz, For playback: 100 to 20,000 Hz |
|
Signal
processing |
Adaptive echo
canceller, Noise reduction, Automatic tracking, Automatic gain control,
Automatic room EQ, Dereverberation, Automatic audio
tuning |
