Aten HDMI over IP Transmitter (1080p@100m)
Overview
- Extends AV connections from a simple point-to-point to a multi-point to
multi-point setup via LAN
- Delivers HDMI visually lossless high-quality video up to 1080p @ 60
Hz
- Effortlessly switches via top panel pushbuttons
- USB Connectivity USB port (USB 2.0) allows for connection of devices such
as keyboard, mouse, flash drive, printer, and other USB
peripherals
The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p
AV signals with low latency over long distance via a local network of standard
Gigabit network switch*
The VE8900T provides an effective, easy-to-use, and economical digital
signage solution with the following features and advantages that directly
address the challenges system integrators encounter when implementing AV over IP
systems:
- Limitless scalability and flexibility
- No complicated IP setup
- No additional server PCs or software required
- Go further for less with daisy chaining
Engineered to meet todays demands of large scale, multi-display, 1080p signal
transmission, and designed to be easy to set up and operate, the VE8900T Video
over IP Transmitter is an ideal product for a wide range of environments, such
as trade shows, airports, university campuses, conference centers, and shopping
centers.
Package Contents
- 1x VE8900T HDMI over IP Transmitter
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
Features
Lightweight Compression with Ultra-low
Latency
- Delivers visually lossless high-quality video up to 1080p @ 60
Hz
- Ensures stunning quality video using ATEN advanced video lossless
compression technology
- EDID Expert selects the optimum EDID settings for smooth power-up,
high-quality display and the best video resolution across different
screens
- Offers different levels of video compression rate including Smooth,
Balance, and High Quality for users to choose depending on practical
usage
Limitless Scalability and Flexibility
- Extends AV connections from a simple point-to-point to a multi-point to
multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video
wall and daisy chain applications
Collaboration with ATEN Control System
- Integrated solution Compatible with ATEN Control System, allowing users to
directly operate VE8900T via CLI Telnet or RS-232 protocol
- Effortless operation One click to effectively operate VE Manager, TV,
projector, source player, and related equipments via touch panel and
keypad
Spontaneous Scheduling Management
- Offers an user-friendly scheduling management function for users to
pre-plan the display schedule
- Provides robust and intuitive scheduling management options to help users
to manage all events in the calendar to as detailed as to setting events to
minute intervals
- Integrates all VE89 units to arrange the profile by grouping individual
receiver or video wall
- Multiple profiles can be arranged to play in any order over a selected
period of time
No Complicated IP Setup
- Simple configuration that requires no extensive IT experience or extra
learning

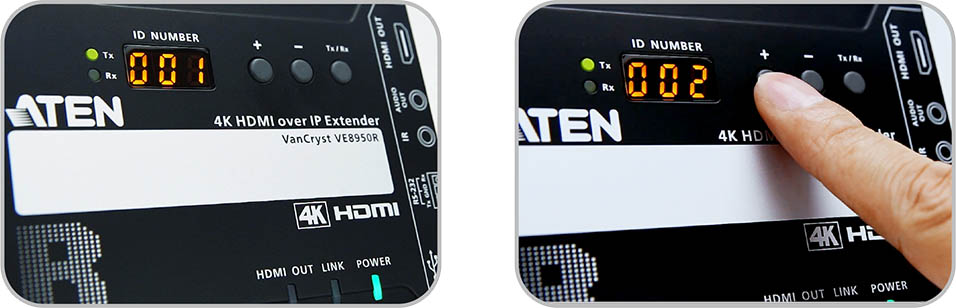

- Effortlessly switches among input sources via top panel
pushbuttons
Web GUI-Based Management, No Additional Server PCs or Software
Required
- Simple Access Without typing IP address on Chrome browser, users are
allowed to directly link to VE Manager via one click on Find My VE Chrome
based free tool
Go Further For Less with Daisy Chaining*
- Connects multiple displays through a single port to utilize every port of
the network switch and maximize their value
- Easily expandable cabling and system deployment is easy with no huge
network switches and fewer cables needed
- Perfect for large-scale deployment covering hundreds of meters, such as
hotel facilities, airports, university campuses, stations, shopping malls, and
exhibition centers
* Depending on your network architecture, we recommend daisy chaining up to
30 units. Please contact ATEN representatives for more details.
*Use daisy chains to configure a video wall or expand the AV system hundreds
of meters
Video Wall Support
- Supports up to 8 x 8 video wall (64 displays)*
- Supports horizontal or vertical (90 and 270 rotation) display
orientation
- Easily switches layout profiles, preview and drag-and-drop video sources
via the intuitive web GUI
*Depends on your network architecture, please contact ATEN representatives
for more details.
Embedded / De-embedded Audio Support
- Separate audio signal can be embedded into the HDMI
stream
Multiple Control Channels
- Multiple control methods the system can be managed via Ethernet or
top-panel pushbuttons
- USB Connectivity USB port (USB 2.0) allows for connection of devices such
as keyboard, mouse, flash drive, printer, and other USB
peripherals*
- Bi-directional IR Channel IR transmission is processed one way at a
time
- RS-232 Channel bi-directional RS-232 serial port allows for connection of
peripherals such as touch screens and bar code scanners
Note: *Each VE8900T transmitter can be controlled by a total of 4 USB touch
screens installed to VE8900R receivers.
Diagram
Specifications
|
Video
Input |
|
Interfaces |
1 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
Video |
|
Max. Data
Rate |
Average: 150 ~
500Mbps |
|
Compliance |
HDMI |
|
HDCP
Compatible |
|
Max. Resolutions /
Distance |
Up to 1080p@100m (Cat
5e/6, point to point) |
|
Audio |
|
Input |
1 x HDMI Type A Female
(Black) |
|
1 x Mini Stereo Jack
Female (Green) |
|
Control |
|
IR |
1 x Mini Stereo Jack
Female (Black) |
|
RS-232 |
Connector: 1 x Terminal
Block, 3 pole |
|
Baud Rate: 19200, Data
Bits:8, |
|
Stop Bits:1, no parity
and flow control |
|
USB |
1 x USB Type B Female
(White) |
|
Pushbuttons |
|
ID Number
Selection |
2 x Push
buttons |
|
Connectors |
|
Power |
1 x DC Jack (Black)
with locking |
|
Power
Consumption |
DC5V:3.07W:14BTU |
|
Environmental |
|
Operating
Temperature |
0 -
40C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.50 kg ( 1.1 lb
) |
|
Dimensions (L x W x H)
with bracket |
14.02 x 12.30 x 3.06
cm |
|
(5.52 x 4.84 x 1.2
in.) |
|
Dimensions (L x W x H)
without bracket |
13.60 x 10.10 x 2.96
cm |
|
(5.35 x 3.98 x 1.17
in.) |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
