All stock codes associated to this product
SMV1500CAI, UPAPCSMV1500CAI, UPAPC-SMV1500CAI, 4532325, 731304346531

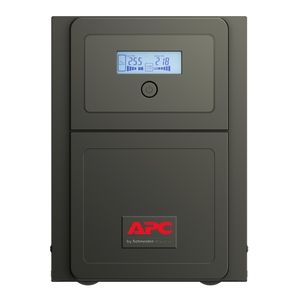

APC SMV1500CAI Easy UPS SMV 1500VA 230V
Overview
- Best Value UPS with Battery Backup & Surge Protection for Electronics
and Computers
- Includes: Documentation CD, USB cable, User Manual
Key Features
Output power
capacity |
1.05kWatts
/1.5kVA |
Output Connections
|
(6) IEC 320 C13 (Battery
Backup) |
Nominal Output
Voltage |
230V |
Nominal Input
Voltage |
230V |
Input Connections
|
IEC-320
C14 |
- APC Easy UPS SMV 1500VA 230V
- Best Value UPS with Battery Backup & Surge Protection for Electronics
and Computers
- Includes: Documentation CD, USB cable, User
Manual
Automatic Voltage Regulation (AVR)
- Automatically steps up low voltage and steps down high voltage to levels
that are suitable for your equipment.
Cold-start capable
- Provides temporary battery power when the utility power is
out.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters
and alarms.
Pure sine wave output on battery
- Simulates utility power to provide the highest degree of compatibility for
active PFC (power factor corrected) servers and sensitive
electronics.
Easy UPS Features & Benefits
Manageability
- Audible alarms
- Provides notification of changing utility power and UPS power
conditions
- LED Indicators
- Provide easy-to-read status of the unit and utility power
conditions.
Safety
- Safety-agency approved
- Ensures the product has been tested and approved to work safely with the
connected service provider equipment and within the specified
environment.
Availability
- Advanced Safety Features
- Safeguard your Home UPS from overloads, excessive mains voltages, short
circuits, installation mishaps and battery damage due to low voltage
situations.
- Battery failure notification
- Provides early-warning fault analysis on batteries enabling timely
preventive maintenance
- Intelligent battery management
- Maximizes battery performance, life, and reliability through
intelligent, precision charging.
Features
- Cold-start capable
- Provides temporary battery power when the utility power is
out.
- Transformer-block spaced outlets
- Protect equipment with input transformer blocks without blocking access
to other receptacles.
- Sleek design
- Slim, modern design can be upright, flat, or wall-mounted to comfortably
fit any electronics set-up and complement home dcor.
- Boost Automatic Voltage Regulation (AVR)
- Preserves battery life and maximizes runtime by correcting low voltages
without discharging the battery.
Protection
- Battery and surge protected outlets
- Back up and protect your hardware and data during power outages, surges
and spikes.
- Battery backup and surge protection
- Outlets provide abundant runtime for network gateway equipment and other
critical low-power devices, allowing for hours of internet access during a
power outage.
Specifications
Output |
|
Max Configurable Power
(Watts) |
1.05kWatts /
1.5kVA |
Output Frequency (not
synced) |
50/60 Hz +/-1
Hz |
Load Crest Factor
|
3:01 |
Topology
|
Line
Interactive |
Waveform type
|
Sine
wave |
Transfer Time
|
2ms
typical |
Input |
|
Input frequency
|
45 - 65 Hz (auto
sensing) |
Input voltage range for
main operations |
160 -
295V |
Number of Power Cords
|
1 |
Other Input Voltages
|
220,
240 |
Batteries &
Runtime |
|
Battery type
|
Maintenance-free sealed
Lead-Acid battery with suspended electrolyte :
leakproof |
Typical recharge time
|
4hour(s) |
Expected Battery Life
(years) |
3 -
5 |
Battery Volt-Amp-Hour
Capacity |
216 |
Communications &
Management |
|
Interface Port(s)
|
USB |
Audible Alarm
|
Alarm when on battery :
distinctive low battery alarm : overload continuous tone
alarm |
Physical |
|
Maximum Height
|
220MM,
22.0CM |
Maximum Width
|
160MM,
16.0CM |
Maximum Depth
|
410MM,
41.0CM |
Net Weight
|
17.8KG |
Shipping weight
|
20.75KG |
Shipping Height
|
339MM,
33.9CM |
Shipping Width
|
272MM,
27.2CM |
Shipping Depth
|
508MM,
50.8CM |
Environmental |
|
Operating Temperature
|
0 - 40
C |
Operating Relative
Humidity |
0 - 95 (non-condensing)
% |
Operating Elevation
|
0-3000meters |
Storage Temperature
|
-10 - 40
C |
Storage Relative
Humidity |
0 - 95
% |
Storage Elevation
|
0-3000meters |
Audible noise at 1
meter from surface of unit |
45.0dBA |
Conformance |
|
Approvals
|
CE |
Standard warranty
|
2 years repair or
replace |
Sustainable Offer
Status |
|
RoHS |
Compliant |
REACH
|
REACH: Contains
SVHCs |
