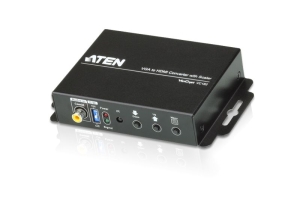

Aten VGA/Audio to HDMI Converter with Scaler
Overview
- Converts VGA signals to HDMI output
- Scaler - a premium scaling engine that converts various input video
resolutions into the display's native resolution, while adjusts picture ratio
automatically for maximum viewing comfort
- Features a superior de-interlacer function for smooth video playback
quality
- Supports analog / digital audio
The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way
of converting VGA input signals into digital video (HDMI). The VC182 carries a
high-performing scaling engine that converts the video resolution to give you
the best image quality.
You can operate the VC182 via the built-in On-Screen Display (OSD), which can
be controlled through accessible front panel pushbuttons.
Package Contents
- 1x VC182 VGA to HDMI Converter with Scaler
- 1x Power Adapter
- 1x Software CD
- 1x User Instructions
Features
- Converts VGA signals to HDMI output
- Supports analog / digital audio
- Superior video quality up to 1080p, 1920 x 1200
- Scaler - a premium scaling engine that converts various input video
resolutions into the display's native resolution, while adjusts picture ratio
automatically for maximum viewing comfort
- 3D Deinterlacing - increases image clarity for ultimate viewing quality by
processing and scanning digital video signals
- Features a built in high-performance scaler function for best image
quality
- Features a superior de-interlacer function for smooth video playback
quality
- Built-in OSD function for video and system settings confi
guration
- Integrated superior video noise reduction
- Integrated next generation color engine automatic picture quality/color
adjustment and enhancement
- Automatically detects video input signals
- LED indication of power status and source device
- No software required eliminates incompatibility and installation
issues
- Device configuration using a utility tool via mini USB port
- Supports 16:9 and 4:3 video aspect ratios
- Multiple selectable video resolutions
Diagram
Specifications
|
Video
Input |
|
Interfaces |
1 x HDB-15 Female
(Blue) |
|
Impedance |
75
|
|
Video
Output |
|
Interfaces |
1 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Video |
|
Max. Pixel
Clock |
165
MHz |
|
Max.
Resolution |
Up to
1080p |
|
Scaler
Resolutions |
480p; 480i; 576p; 576i;
800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; |
|
1360 x 768; 1440 x
900; 1400 x 1050; 1600 x 1200; 1680 x 1050; |
|
1080i; 1080p; 1920 x
1200 |
|
Audio |
|
Input |
Analog: 1 x Mini Stereo
Jack Female (Black) |
|
Digital: 1 x RCA
(Yellow) |
|
Connectors |
|
Power |
1 x DC
Jack |
|
Power
Consumption |
DC5V:1.56WBTU |
|
Environmental |
|
Operating
Temperature |
0 - 40
C |
|
Storage
Temperature |
-20 - 60
C |
|
Humidity |
20 - 90% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.31 kg ( 0.68 lb
) |
|
Dimensions (L x W x
H) |
11.00 x 8.30 x 2.80
cm |
|
(4.33 x 3.27 x 1.1
in.) |
|
Carton
Lot |
5
pcs |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
