All stock codes associated to this product
E2420H, 4805615, II41057, 884116366072

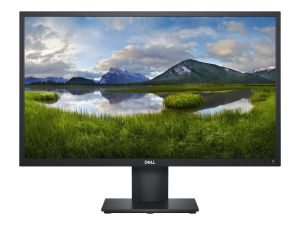

Dell 24" Monitor
Overview
Elevate your everyday display
An affordable 23.8" monitor made for your daily workflow. Featuring an
elegant design, Full HD resolution and Dell Display Manage
Designs and Features
All the essentials, and then some
Maximize your workspace: A thin profile1 and improved cable management create
a smaller footprint, lending itself to a clean, uncluttered desk.
Enhanced views: The Full HD resolution is ideal for everyday tasks, while
ComfortView is ready for extended viewing periods. It reduces up to 60% of
harmful blue light emissions.2
Versatile connections: Our E Series monitors accommodate legacy and
non-legacy systems with convenient connectivity options like VGA and DP ports.
Your workspace will be completely customized to your needs.
Adapts to your needs: Make your workspace your own with VESA-compatible
mounts and stands.
Improved Dell Display Manager
Productive at every level: Dell Display Managers (DDM) Easy Arrange feature
lets you quickly tile and view your applications side by side across one or more
connected screens for multitasking efficiency. And with the improved DDM, youll
get even more preset layouts.
Seamless transitions: The auto-restore feature remembers where you left off,
so applications will go back to where you left them, even after youve
unplugged.
The key to convenience: Shortcut keys can save you even more time, letting
you easily configure your display management settings so you can get to work
faster.
More ways to manage: Asset management reports allow IT managers to quickly
capture and track monitor information as well as configure multiple monitors at
once through a single setup.
Eco-friendly inside and out
Guaranteed green: Compliant with the latest Energy Star standards, the E
Series monitors meet stringent energy efficiency requirements while in sleep, on
and off modes. Theyre also TCO-certified.
Energy reducing: Save energy with PowerNap, a feature that dims or puts the
monitor to sleep when not in use.
Clean disposal: Composting or recycling the packaging is easy since its made
with at least 25% of recycled cardboard.
Connectivity Options
Ports & Slots:
1. Power Port | 2. DP Port 1.2 | 3. VGA Port
Peace of mind, guaranteed
Our products are engineered with care and precision, so we guarantee support
and peace of mind.
A brand you can rely on
As the No. 1 monitor company worldwide5, we take pride in our unyielding
commitment to quality and the utmost customer satisfaction.
Advanced Exchange Service
Your monitor comes with a 3-year Advanced Exchange Service6 so that if a
replacement becomes necessary, it will be shipped to you the next business day
during your 3-year Limited Hardware Warranty.7 Upgrade to 24x7 specialized
technical phone support with the Dell ProSupport option.
Reliable and responsible
Designed with the environment in mind, this monitor meets the latest
regulatory and environmental standards such as China Energy Label (CEL), WEEE,
ErP (EuP) Standards, and Korea E-Standby.
Specifications
|
Display |
|
|
Diagonal Viewing
Size |
60.47 cm (23.8
inches) |
|
Horizontal |
527.04 mm (20.75
inches) |
|
Vertical |
296.46 mm (11.67
inches) |
|
Panel
Type |
IPS (In-Plane
Switching) |
|
Display Screen
Coating |
Anti-Glare |
|
Maximum Preset
Resolution |
1920 x 1080 at 60
Hz |
|
Viewing
Angle |
178/178 |
|
Pixel
Pitch |
0.275 mm x 0.275
mm |
|
Pixel Per Inch
(PPI) |
92 |
|
Contrast
Ratio |
1000:1
(typical) |
|
Aspect
Ratio |
16:09 |
|
Backlight
Technology |
LED |
|
Brightness |
250 cd/m
(typical) |
|
Response
Time |
8 ms typical (Normal) 5
ms typical (Fast) (gray to gray) |
|
ComfortView with
Flicker-free screen |
Yes |
|
Dell Display Manager
Compatibility |
Yes |
|
Remote Asset
Management |
Yes, via Dell Command I
Monitor |
|
GSA/TAA |
No |
|
Optional
Soundbar |
AC511 - usb powered via
PC |
|
AE515 Skype for
Business Certified |
|
Connectivity |
|
|
Connectors |
1 X
VGA |
|
1 X DisplayPort
1.2 |
|
HDCP
Support |
DisplayPort HDCP
1.2 |
|
Security |
Security lock slot
(cable lock sold separately) |
|
Dimensions &
Weight |
|
|
Dimensions (with
stand) |
|
|
Height |
419.70 mm (16.52
inches) |
|
Width |
550.60 mm (21.68
inches) |
|
Depth |
171.0 mm (6.73
inches) |
|
Weight |
|
|
Weight (panel only -
for VESA mount/ no cables) |
3.25 kg (7.17
lb) |
|
Weight (monitor +
cables) |
4.27 kg (9.41
lb) |
|
Weight (with
packaging) |
5.95 kg (13.12
lb) |
|
Power |
|
|
AC input
voltage/frequency/current |
100 VAC to 240 VAC / 50
Hz or 60 Hz 3 Hz / 0.8 A (typical) |
|
Power Consumption
(Operational) |
15W (Typ). 22W (Max).
14.36W (Energy Star) |
|
Power Consumption Stand
by/Sleep |
Less than
0.3W |
|
Chassis |
|
|
Adjustability |
Tilt Only (-5 to
21) |
|
Standard Service
Plan |
3 Years Advanced
Exchange Service and Limited Hardware Warranty |
|
Optional Service
Plan |
Dell
ProSupport |
|
Color
Support |
Color gamut (typical):
83% (CIE1976) 72% (CIE1931) |
|
Color depth: 16.7
Million |
|
Flat Panel Mount
Interface |
VESA (100
mm) |
|
Regulatory |
|
|
What's in the
Box |
|
|
Components |
Monitor with
stand |
|
Cables |
Power
cable |
|
1 X DP Cable (DP to
DP) |
|
1 X VGA Cable (EMEA and
Japan only) |
|
1 X VESA screw
cover |
|
Documentation |
Quick Setup
Guide |
|
Safety and regulatory
information |
|
Environmental
Compliance |
ENERGY STAR, EPEAT
registered where applicable, TCO Certified
Display |
|
Product Safety, EMC and
Environmental Datasheets (in English) |
|
Dell Regulatory
Compliance Home Page (in English) |
|
Dell and the
Environment |
