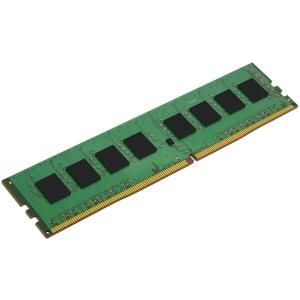

Kingston KVR32N22D8/32 32GB 2Rx8 4G x 64-Bit PC4-3200 CL22 288-Pin
DIMM
Description
This document describes ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB)
DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen
2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency
DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact
fingers. The electrical and mechanical specifications are as follows:
Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask
signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode
register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23 (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
CL(IDD) |
22
cycles |
Row Cycle Time
(tRCmin) |
45.75ns(min.) |
Refresh to
Active/Refresh |
350ns(min.) |
Command Time
(tRFCmin) |
|
Row Active Time
(tRASmin) |
32ns(min.) |
UL
Rating |
94 V -
0 |
Operating
Temperature |
0o C to +85o
C |
Storage
Temperature |
-55o C to +100o
C |
