All stock codes associated to this product
CS62KM-AT, CS62KMAT, KVACS62KM, KVA-CS62KM, ATCS62KM, 4719264649479

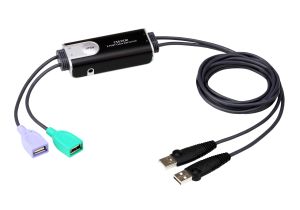

The Aten 2-Port USB Boundless Cable KM Switch CS62KM-AT enables users to control up to 2 computers with a single keyboard and mouse. It offers various innovative port selection methods for users to switch between the connected computers via remote port selector, keyboard hotkey, mouse cursor, and mouse wheel. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display without limitations.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 12 months manufacturer's warranty.
FEATURES
• Single USB keyboard and mouse control up to 2 computers
• Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel1
• No software required
• Firmware upgradable
• Supports USB hot-plugging
• Bus-powered – no external power adapter required2
• Works with Windows, iOS, Android, macOS, and Linux operating systems3
Note:
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. The USB bus-powered design allows the switch to get power from the connected computers. It requires a connection to two computers to get a sufficient power supply.
3. The boundless switching only supports on Windows operating system.
QUICK SPECIFICATIONS
• Computer Connections 2
• Port Selection Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector
• Connectors
- Console Ports 2 x USB Type A Female
- KVM (Computer) Ports 2 x USB Type A Male
- Remote Port Selector 1 x 2.5mm Audio Jack Female
• LEDs
- Selected 2 (Green)
• Cable Length
- Console 0.15 m
- Computer 1.2 m
- Remote Port Selector 1.8 m
• Emulation
- Keyboard / Mouse USB
• Power ConsumptionDC 5V:0.74W:7.7BTU
• Environmental
- Operating Temperature 0-40°C
- Storage Temperature -20-60°C
- Humidity 0-80% RH, Non-condensing
• Physical Properties
- Housing Plastic
- Weight 0.12 kg ( 0.26 lb )
- Dimensions (L x W x H) 8.45 x 3.40 x 2.21 cm, (3.33 x 1.34 x 0.87 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
WHAT'S INCLUDED
• Aten 2-Port USB Boundless Cable KM Switch CS62KM-AT
• 1x Remote Port Selector
• 1x User Instructions
